The False Security of Ambient Temperature

Why Does a Thermal Fault Trip When the Room Is a Comfortable 25°C?

A 6kW fiber laser source behaves like a high-performance engine pinned at redline. While you’re enjoying that mild 25°C airflow from the shop HVAC, the laser module inside its steel enclosure is suffocating in its own trapped heat. The ambient air in your facility has virtually no ability to pull heat out of a sealed optical cavity at a meaningful rate. Heat moves across a delta—the difference between two temperatures—and the air ten feet away from your machine is an awful thermal conductor. If you’re relying on room air to protect the system, you’re effectively letting internal components roast until the heat slowly migrates through the frame.

Scrap Bin Warning: I keep a twisted three-foot section of extruded aluminum gantry bolted to the wall above my desk as a reminder. An apprentice assumed a 22°C shop meant he could run a continuous 48-hour shift without verifying chiller flow. The drive side of the gantry climbed to 45°C while the idle side stayed cool. The resulting differential expansion permanently warped the extrusion and sent $4,000 worth of linear rails to the scrap pile.

If the wall thermostat reads a steady 25°C but your chiller compressor never cycles off, inspect the heat exchanger fins for dust buildup immediately.

The machine doesn’t care whether you’re comfortable. It only cares whether heat is being removed faster than it’s generated. So when ambient air can’t carry the load, where does all that energy actually go?

Where Thermal Energy Truly Bottlenecks During Continuous Nesting Operations

Think of your laser cutter not as a single piece of equipment, but as a densely populated city plagued by chronic traffic congestion.

The ambient room temperature is merely the weather outside. It may be bright and pleasant or damp and stormy—but the weather alone will not clear a traffic jam. Your dual-circuit chiller functions as the highway network. During a continuous nesting run, thermal energy doesn’t simply disappear into thin air. It accumulates at critical “toll booths”: the laser source diodes, the cutting head optics, and the mechanical drive motors.

If the cutting head feels warm to the touch—even through its protective cover—pause the program immediately and confirm that the high-temperature chiller circuit is circulating properly at its 30°C setpoint.

When liquid coolant cannot absorb heat quickly enough, that energy backs up into the surrounding metal. The lenses absorb only a fraction of a percent of the beam’s power—seemingly trivial until you calculate that 1% of 6,000 watts equals 60 watts of concentrated heat injected into a coin-sized piece of glass. The liquid cooling loop is designed to carry that heat away efficiently. But problems begin when we treat the cooling system as a fixed, set-and-forget number instead of a responsive, tightly controlled operating range.

The Hidden Cost of Viewing Temperature as a Fixed Number Instead of a Controlled Range

OSHA and general safety standards may advise keeping your workshop between 15°C and 25°C. Your CNC drive manual might claim it can tolerate temperatures from 5°C to 70°C. These broad, static ranges create a false sense of security. They condition you to glance at a thermometer, see “20°C,” and assume everything is fine. In reality, a fiber laser source demands internal thermal stability within a punishing ±0.5°C window.

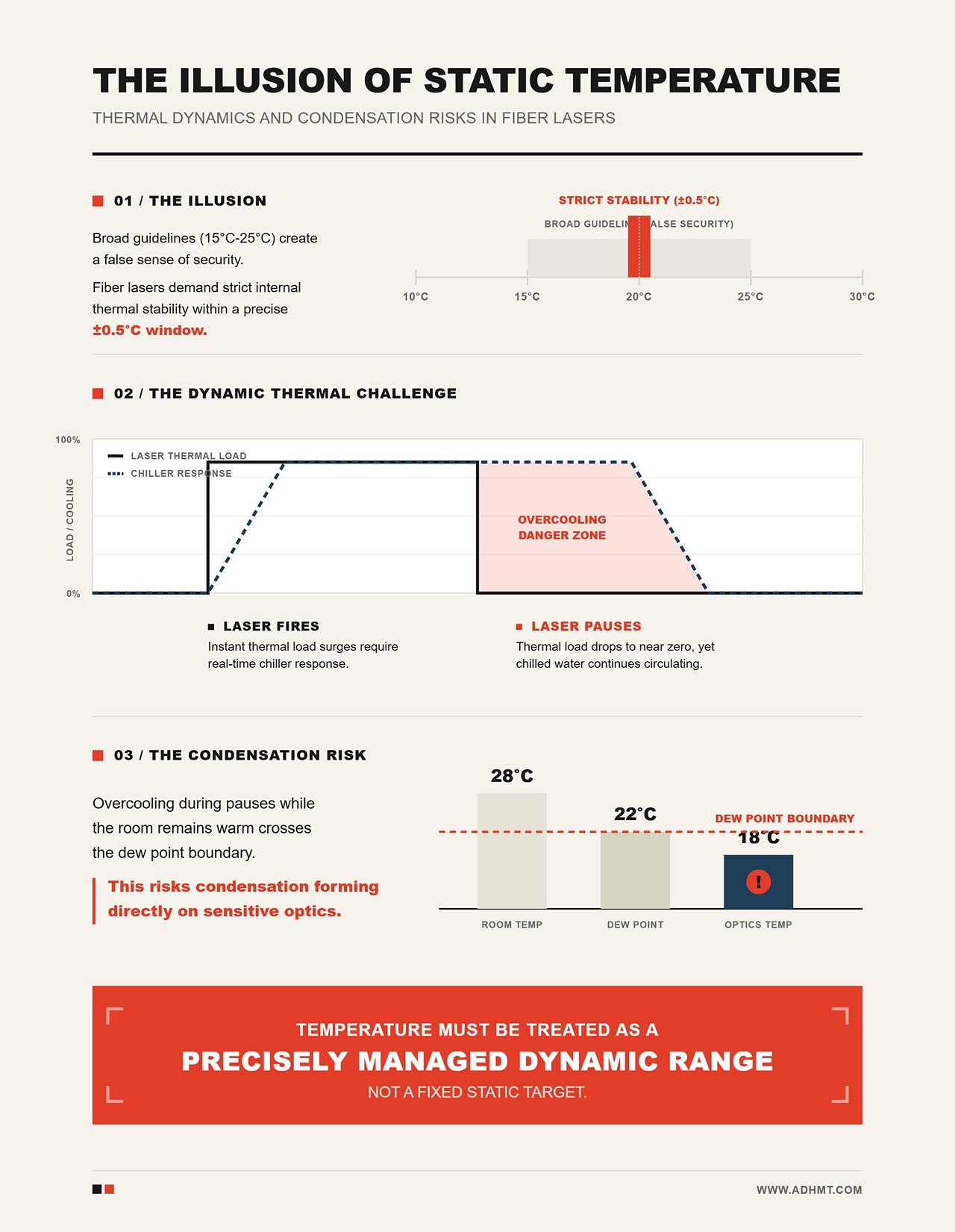

Static temperature targets are misleading because industrial cutting is inherently dynamic.

Each time the laser fires, the thermal load surges instantly. The chiller must respond in real time, delivering colder water to absorb that spike. When the laser pauses and rapid-travels to the next pierce point, the thermal load drops to near zero—yet chilled water continues circulating. If the cooling system overcompensates and drives the water temperature too low while the room remains at a “comfortable” 25°C, you cross the invisible boundary of the dew point. The moment you treat temperature as a fixed target instead of a precisely managed dynamic range, you risk condensation forming directly on your optics.

How do you keep your machine’s internal climate locked within that ±0.5°C window—without accidentally turning your cutting head into a rain cloud?

The Dual-Circuit Imperative: Why Combining Temperatures Destroys Optics

You maintain that strict ±0.5°C internal climate by rethinking the machine entirely. Your laser cutter is a high-performance industrial engine. The workshop’s ambient temperature is simply the weather outside the garage; the dual-circuit chiller is the radiator and oil cooler preventing the engine block from overheating. Supplying identical coolant temperatures to every component and expecting long-term reliability is a fundamental mistake. Production-ready systems such as the Single Table Fiber Laser Cutting Machine from ADH Machine Tool are engineered within a fully CNC-based platform for high-end laser cutting scenarios, making stable dual-circuit temperature control part of the machine architecture—not an afterthought.

The Mechanical Rationale for Splitting the Cooling Loop

Walk to the rear of your chiller unit. You’ll see two distinct pairs of water lines exiting the housing—one thicker set feeding the main cabinet, and one thinner set running through the cable track up to the gantry.

They are separated for a reason: the machine contains two fundamentally opposing thermal environments. The laser source is a sealed, high-voltage furnace generating intense internal heat that must be aggressively removed. The cutting head, by contrast, is a precision optical assembly exposed to open, humid shop air. If you try to cut costs by running both the resonator and the cutting head on the same 21°C water loop, you are effectively signing your lenses’ death warrant. A dual-circuit system exists to isolate these components, allowing the chiller’s compressor to independently combat the specific thermal challenge each one presents.

If the low-temperature circuit reads 21°C but the high-temperature circuit display is blank, disabled, or manually bypassed, stop the machine immediately and confirm that the dual-loop configuration has not been overridden.

What actually happens inside the resonator when that isolated, aggressive cooling is compromised?

Laser Source Loop at 20–22°C: How a 1°C Drift Impacts Beam Quality

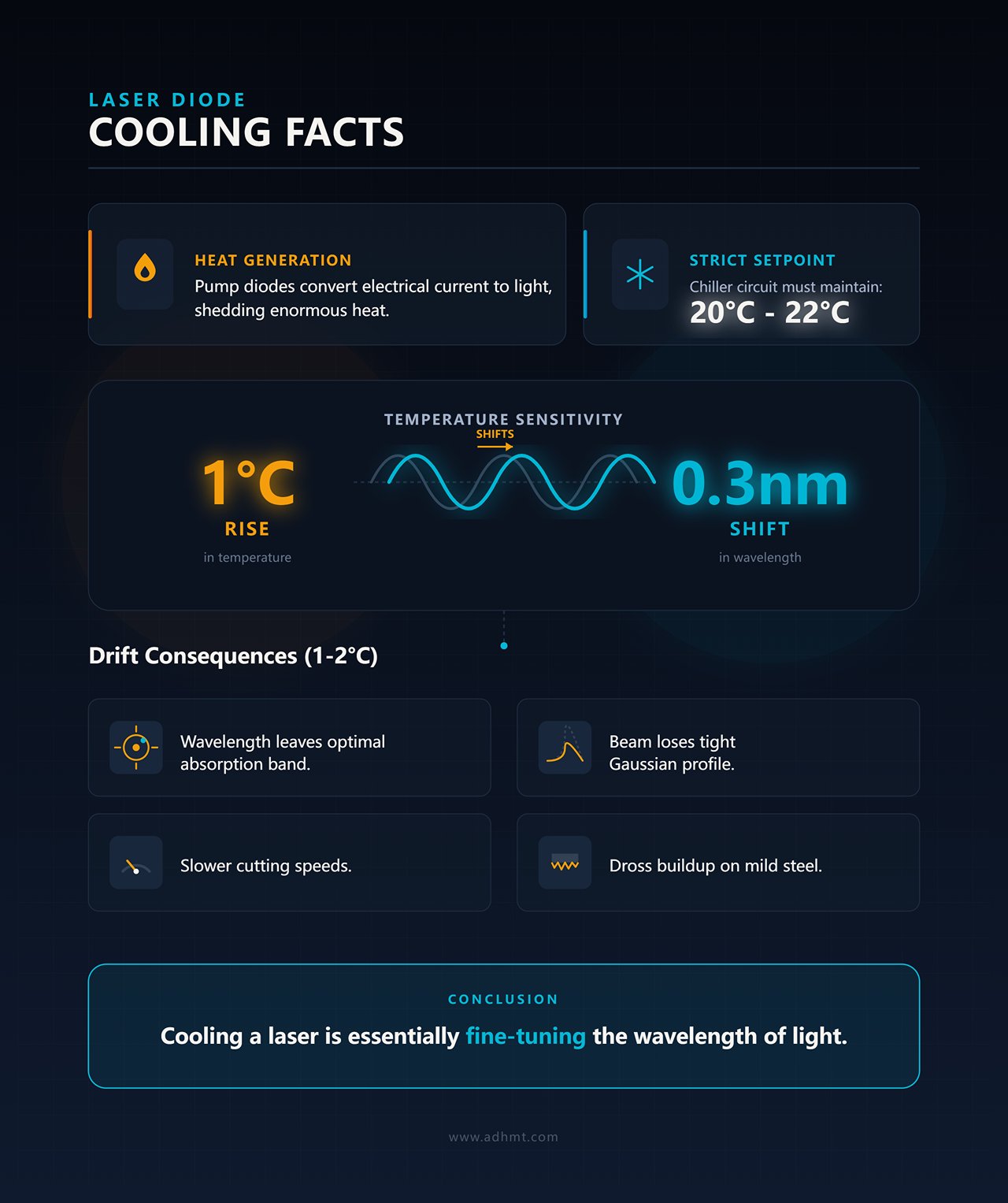

Inside the laser source cabinet, rows of pump diodes fire continuously, converting electrical current into coherent light.

These diodes are inherently inefficient, shedding enormous amounts of heat into their mounting plates. They depend entirely on a dedicated low-temperature chiller circuit—strictly maintained between 20°C and 22°C—for survival. But this setpoint is about more than preventing thermal failure. At a microscopic level, laser diodes are extremely temperature-sensitive. For every 1°C rise in diode temperature, the emitted wavelength shifts by roughly 0.3 nanometers.

A drift of just one or two degrees is enough to push the wavelength out of the active fiber’s optimal absorption band. The beam loses its tight, Gaussian profile. Cutting speeds decline, dross builds up on the underside of mild steel plates, and you can burn hours adjusting gas pressures—when the real issue is a chiller compressor struggling to hold temperature. You’re not simply cooling the machine; you’re fine-tuning the wavelength of light itself.

If cold water is that essential to preserving beam quality, why not run the same 20°C water through the gantry to cool the cutting head?

Cutting Head Loop at 28–30°C: The Warmer Setpoint That Safeguards the Optics

The cutting head operates just millimeters above molten metal, constantly exposed to whatever humid air circulates through your shop.

Feed that precisely regulated 20°C water into the cutting head on a humid summer afternoon, and the metal housing temperature will quickly fall below the ambient dew point. Moisture in the air will condense directly onto the internal optics—and water absorbs 1-micron laser light instantly.

Scrap Bin Warning: I keep a shattered collimating lens in a plastic bag pinned to my bulletin board. An apprentice once thought he was helping by lowering the cutting head loop to 22°C during a July heatwave to “keep it extra cool.” Condensation formed a microscopic film of water across the lens surface. When the 6 kW beam struck that moisture, it flashed into steam, expanded violently, and split the $800 optic straight down the center.

If you notice a sudden, unexplained drop in cutting performance accompanied by a faint haze on the protective glass, immediately raise the cutting head chiller setpoint to 30°C and purge the head with dry assist gas.

That 28–30°C setpoint isn’t about cooling the cutting head. It’s about thermal shielding—keeping the glass just warm enough to stop moisture in the surrounding shop air from condensing on its surface.

If the physics clearly demand two very different temperatures, why do so many shops insist on running everything through a single loop?

One Setpoint for Both Circuits: Why This Common Shortcut Guarantees Instability

A shop invests six figures in a laser system—then tries to save a few thousand by choosing a budget single-circuit chiller. Or an operator, tired of juggling two alarms, dials the entire system to 25°C as an easy compromise.

Given that ADH Machine Tool invests more than 8% of annual sales revenue in research and development. ADH operates R&D capabilities across press brakes, for teams evaluating practical options here, Double Table Fiber Laser Cutting Machine is a relevant next step.

In optics, compromise is catastrophic. At 25°C, the laser source diodes run too hot. Their wavelength drifts, beam quality declines, and the resonator’s service life shortens. At the same time, if a storm pushes shop humidity to 70%, that same 25°C may still be too cold for the cutting head—pulling the lenses straight back into the condensation danger zone. You end up with the worst of both scenarios. Real thermal stability means abandoning thermostat-style thinking and tightly controlling the differential in a dual-circuit chiller, holding variation to ±0.5°C.

When you merge those temperature setpoints, you remove the machine’s only real defense against the invisible moisture suspended in your shop air.

The Dew Point Trap: Why Turning the Chiller “Colder” Wrecks Your Machine

In a 35°C shop at 80% relative humidity, the air is saturated with moisture. The dew point in those conditions is 31°C. If you set up your dual-circuit chiller by simply dialing everything down—assuming that "colder is better"—and send 22°C water to the cutting head, you’re not protecting the machine. You’ve effectively turned it into a high-tech dehumidifier. Moisture will immediately condense out of the air onto any surface cooled by that water. To maintain strict ±0.5°C stability without damaging your optics, you must stop treating the chiller like a household air conditioner and start treating it as a dynamic thermal barrier—one that’s calibrated to the real-time climate inside your shop.

Given that ADH Machine Tool's product portfolio is 100% CNC-based and covers high-end scenarios in laser cutting, bending, grooving, shearing, for teams evaluating practical options here, Dual-use Fiber Laser Cutting Machine is a relevant next step.

So how do you determine the exact point at which your shop air becomes a threat?

At What Precise Humidity-to-Temperature Ratio Does Your Cooling System Turn Into a Water Generator?

For high-power lasers above 2500W, the high-temperature circuit that cools the optics is typically set between 27°C and 33°C. That range exists because the setpoint must always float safely above the room’s dew point.

If your shop is 30°C at 50% humidity, the dew point is about 18°C. In that case, your 22°C low-temperature circuit for the laser source and your 30°C high-temperature circuit for the cutting head are both comfortably above the condensation threshold. The system stays dry. But when a summer thunderstorm rolls through and humidity jumps to 80%, that same 30°C shop now has a dew point of 26°C. Suddenly, your 22°C laser source loop starts sweating inside its cabinet, and your cutting head edges toward a potentially catastrophic lens failure.

If the ambient dew point in the shop rises to within 2°C of your low-temperature circuit setpoint, you must immediately activate a dedicated, climate-controlled enclosure for the laser source—or suspend operations until humidity levels fall.

But if the laser source is secured inside a sealed cabinet, where does humidity pose the greatest risk first?

Where Condensation Forms First—And Why a Visual Inspection Won’t Catch It

The cutting head sits directly above the workpiece, fully exposed to the shop’s ambient air. The QBH connector—the heavy brass and aluminum interface where the fiber optic cable meets the cutting head—functions as a substantial heatsink. It cools rapidly. When condensation develops here, it doesn’t drip down the outside where you can spot it. It forms internally, directly above the collimating lens.

Scrap Bin Warning: I have a pile of ruined $150 lower protective windows, each marked with cloudy, milky water spots permanently etched into the anti-reflective coating. In one case, an operator ran the high-temperature loop at 25°C during a humid August shift. The QBH quietly condensed moisture internally, which dripped unnoticed onto the protective glass. The moment the laser fired, it flash-vaporized the water and baked the mineral residue into the surface. The result? Beam scatter, degraded cut quality, and three full shifts of bad parts before we traced the problem.

If you notice a sudden spike in cutting head temperature alarms along with a scattered, unfocused beam while cutting mild steel, stop immediately. Pull the protective window drawer and examine the glass under a high-intensity flashlight for microscopic water spots.

So what happens when the shop gets so hot that raising the high-temperature circuit to stay above the dew point starts pushing the optics to their limits?

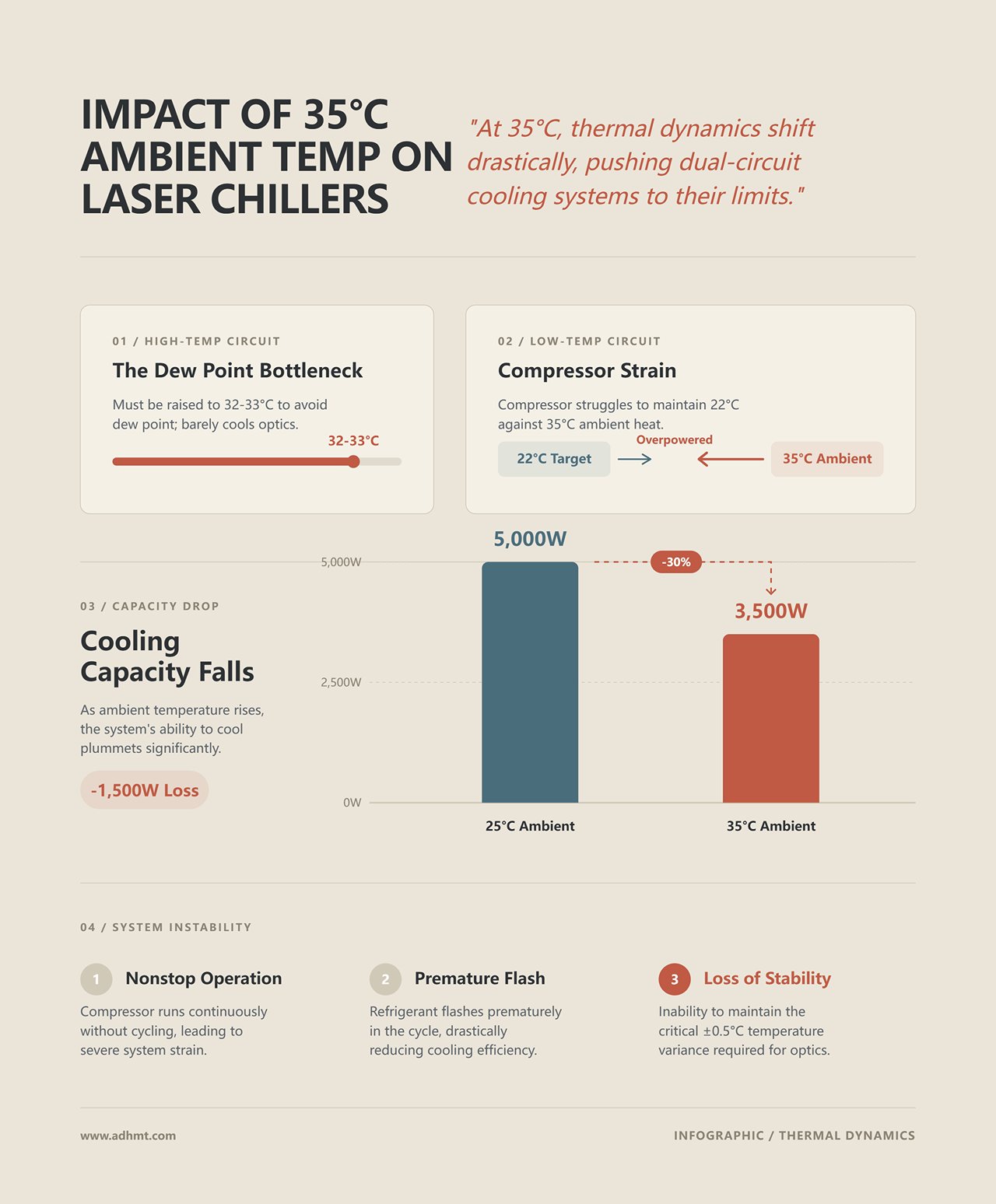

When Ambient Temperatures Exceed 35°C: Recalculating Chiller Headroom Before You Hit the Ceiling

Once your shop reaches 35°C, you’re forced to raise the high-temperature circuit to 32°C or even 33°C just to remain above the dew point. That’s when a harsh new bottleneck emerges.

Now the chiller compressor is battling a 35°C ambient environment to hold the low-temperature circuit at a tight 22°C, while the high-temperature loop runs so warm it barely cools the optics at all. At 33°C, the water is only marginally pulling radiant heat away from a 12kW beam. Remember: a chiller’s cooling capacity isn’t a fixed number on a spec sheet—it drops as ambient temperature climbs. A unit rated for 5,000W at 25°C ambient may deliver only 3,500W when the shop hits 35°C. The compressor runs nonstop, refrigerant flashes off too early in the condenser, and that critical ±0.5°C stability on the laser source circuit begins to drift.

Is summer heat the only time the dew point trap becomes a threat?

Winter Cold Starts: The 15-Minute Warm-Up Protocol You’re Skipping—and the Moisture Shock It Triggers

Winter mornings create a completely inverted condensation trap. Picture a shop that drops to 5°C overnight. The heavy steel frame, the cutting head, and the internal components of the laser source are all thoroughly chilled.

Operators walk in, flip on the main breaker, start the chiller, and immediately enable the laser source. Within minutes, 22°C coolant is being forced into a cabinet that has been sitting at 5°C all night. You’ve just flipped the dew point trap on its head. Now the warm coolant heats the internal components faster than the surrounding air can respond.

Major manufacturers explicitly require a 15-minute cold-start warm-up procedure: turn on the main power key, keep laser emission OFF, and allow the internal cabinet air conditioner to run for a full 15 minutes. This gradual process equalizes the cabinet air temperature with the coolant temperature, preventing a sudden moisture shock inside the sealed resonator.

Skip this step, and condensation can form directly on the internal pump diodes—shorting them out the instant you fire the beam.

Monitoring Temperature Variance: Why ±0.5°C Triggers Faults

A 12kW fiber laser concentrates its energy into a spot roughly 0.15 mm in diameter. If the coolant flowing through the cutting head fluctuates by even 1°C, the brass and aluminum housing that holds the collimating and focusing lenses will expand and contract.

It takes only a few microns of mechanical movement to shift the focal point up or down by 0.1 mm. That invisible change is the difference between a clean nitrogen cut and a jagged edge sealed shut with dross.

You’ve already stabilized the shop environment and calculated dew points to eliminate condensation risk. But keeping the machine alive is only half the battle.

Maintaining the correct absolute temperature prevents catastrophic failure. Controlling temperature variance determines whether the parts you produce are actually sellable.

Chiller Hunting: The Subtle Oscillation That Imitates Major Hardware Failures

When a chiller compressor cycles on and off too quickly, it creates a thermal sine wave in the coolant loop—a phenomenon known as "hunting." The water climbs to 22.5°C, the compressor kicks on aggressively, overshoots down to 21.5°C, shuts off, and the water immediately begins warming again.

Scrap Bin Warning: I once had to scrap an entire $3,200 nesting run of 3/8-inch stainless steel because of a hunting chiller. The operator was convinced the laser source diodes were failing—the cut quality swung from flawless to disastrous every three minutes. The laser was fine. The chiller was cycling the coolant temperature by 1.2°C, causing the cutting head optics to expand and contract like a lung, constantly pulling the focal point out of the kerf.

The laser source’s internal semiconductors are extremely heat-sensitive. When the temperature fluctuates, their electrical efficiency fluctuates with it, reducing the actual wattage delivered to the cutting head in steady, rhythmic waves.

If your cut quality deteriorates and then recovers in a repeating cycle, immediately monitor your chiller’s digital display for at least three minutes. Check whether the temperature is oscillating between consistent high and low limits.

Coolant Supply vs. Coolant Return Temperature: Which Sensor Should Guide Your Decisions?

Most apprentices fixate on the bright green number on the chiller display and assume it tells the whole story. That figure is typically the supply temperature—the water leaving the tank. It reveals nothing about the actual thermal load building up inside the laser.

The return temperature sensor is your real telemetry.

If the supply water is 22°C but the return water comes back at 26°C, your flow rate is likely restricted. The coolant is lingering too long in the heat sinks, absorbing excessive thermal energy before it reaches the radiator again. A kinked hose, a clogged inline filter, or a failing impeller will show up in the return temperature long before the supply temperature begins to rise.

If the temperature differential between coolant supply and return exceeds 2°C under active cutting load, pause the program immediately and inspect your inline water filters for algae buildup or debris that could be restricting flow.

Setting a ±0.3°C Drift Alert Before the ±1°C Factory Alarm Triggers a Shutdown

Factory alarms are engineered to prevent catastrophic equipment failure—not to save your parts from the scrap bin. By the time the machine throws a ±1°C temperature fault and halts the program, the cut edge has already suffered.

You need to tighten the leash.

Setting a custom drift alert at ±0.3°C gives you a vital early-warning window. You can see the compressor straining under the thermal load before the focal point drifts far enough to scrap a plate. It alerts you that the system is losing control of its variance while there’s still time to complete the current contour and pause the machine safely.

Full-Shift Thermal Logs vs. Spot Checks: What Trend Lines Reveal About Slow-Burn Failures

Walking past the chiller and seeing “22.0°C” creates a false sense of security. It’s nothing more than a one-second snapshot.

Slow-burn failures rarely trigger sudden alarms. A condenser coil gradually clogging with shop dust can lose heat-transfer efficiency over the course of a month. The chiller will still reach its 22°C setpoint, but the compressor may need to run 10% longer each cycle to maintain it. Meanwhile, temperature variance quietly stretches from ±0.1°C to ±0.4°C.

You’ll only catch this by reviewing full-shift thermal logs.

If you’re comparing cooling stability claims or validating whether a system can truly hold tight tolerances over long production runs, the detailed technical documentation from ADH Machine Tool provides deeper specifications, cooling configurations, and performance data to support your evaluation. You can download the full brochures and technical materials here: Download the ADH Machine Tool brochures.

The trend line reveals the compressor’s duty cycle gradually extending. It pinpoints the exact week your cooling capacity began to decline. You service the machine when the data shows it’s overworking—not when an alarm finally confirms it has already failed.

For example, ADH Machine Tool operates more than 50 sales and service points in China and overseas; ADH Machine Tool invests more than 8% of annual sales revenue in research and development. ADH operates R&D capabilities across press brakes; to see the process or result more concretely, Virtual Factory Tour is a helpful reference.

Active Coolant Physical Inspection Checklist:

1. With the pump running, pinch the coolant return line near the chiller inlet. You should feel a strong, steady vibration that indicates unobstructed flow—not a weak or pulsating surge.
2. Switch the chiller display to show return water temperature during a heavy cutting cycle. Confirm it reads no more than 1.5°C above your supply setpoint.
3. Remove the inline water filter housing and inspect the mesh with a flashlight. Look for clear biological slime, which can restrict flow and widen temperature variance long before a low-pressure alarm is triggered.

The Flow Rate Illusion: When “Overheating” Isn’t Actually a Temperature Issue

We’ve established that proactive variance monitoring and return-temperature telemetry are your strongest safeguards against gradual focal drift. But telemetry has a blind spot.

Given that ADH Machine Tool invests more than 8% of annual sales revenue in research and development. ADH operates R&D capabilities across press brakes, for additional context, see contact us.

Think of your laser cutter as a high-performance industrial engine. The shop’s ambient temperature is simply the weather outside the garage. Your dual-circuit chiller functions like the radiator and oil cooler that prevent the engine block from self-destructing. You might have an oversized radiator filled with perfectly chilled fluid, but if the water pump snaps a shaft or shears a pin, the engine will still overheat and warp. Telemetry only tracks the water that passes the sensor—it cannot account for the water that never makes it there.

Temperature describes a condition. Flow rate delivers the work.

If your coolant isn’t circulating at the exact gallons-per-minute specified by the manufacturer, those flawless temperature readings are nothing more than a digital illusion. The heat hasn’t disappeared. It’s simply trapped inside your most expensive components.

If the Coolant Is Holding Steady at 22°C, Why Does the Thermal Switch Keep Tripping?

A thermal switch trips when the actual metal of a component exceeds its safe operating limit. The temperature displayed on your chiller reflects only the fluid in the reservoir—not the coolant confined within the laser head.

Water must move with sufficient velocity to carry heat away from metal surfaces. When flow is restricted—by a kinked hose, a failing impeller, or a clogged micro-channel—the coolant inside the laser source stagnates. Within seconds, it absorbs all the heat it can and stops cooling altogether. The stagnant water becomes a thermal blanket. Meanwhile, the sensor at the chiller calmly reports 22°C because the superheated water trapped in the laser head never returns through the line to trigger an alarm.

If your machine throws a high-temperature fault yet the chiller’s return telemetry shows less than a 0.5°C difference from the supply, immediately inspect your flow sensors and inline pressure gauges for signs of a physical blockage.

Could Degraded, Algae-Laden Water Be Insulating Your Components Instead of Cooling Them?

Water degrades over time. Even laboratory-grade distilled water will gradually leach ions from the copper and aluminum fittings it flows through, increasing its electrical conductivity and subtly changing its heat-transfer performance.

Even more damaging than ionic contamination is biological growth. If any section of your coolant loop is exposed to ambient shop lighting—or if you skipped adding the manufacturer-recommended algaecide—microorganisms will begin to flourish. This biofilm coats the interior surfaces of your heat sinks. And biofilm is an excellent insulator. It forms a physical barrier between the hot metal and the circulating coolant, severely restricting heat transfer—even when flow rate and temperature appear to be perfectly within spec.

Scrap Bin Warning: I once removed a destroyed $14,000 oscillator module from a 4kW system because the night shift ignored a low-flow alarm. The coolant temperature was a steady 22°C, but six months of degraded, algae-laden water had lined the internal microchannels with a microscopic film of biological sludge. That film acted like a winter jacket, trapping heat inside the diodes until the silicon quite literally cooked itself to failure.

If your flow meter shows a normal gallons-per-minute reading yet your laser source continues to overheat, draw off a pint of coolant into a clear glass container and hold it up to the light. Look for haze, cloudiness, or suspended biological matter.

Reflected Heat from Thick Plate Cutting Feeding Back into the Optical Path

In some cases, the heat overwhelming your system is not originating from the laser source at all—it’s being reflected straight back through the nozzle.

When piercing thick plate—particularly highly reflective materials such as copper, brass, or polished aluminum—the beam does not immediately penetrate the surface. A substantial portion of the infrared energy reflects off the workpiece and travels back up into the cutting head. It strikes the internal copper components and the protective lens window, generating an intense, localized heat spike that the head’s internal cooling passages were never engineered to withstand.

No chiller can circulate coolant quickly enough to counteract a sudden flash-heating event. The resulting thermal expansion distorts internal lens mounts, shifts focal position, and ruins the pierce. Lowering the water temperature will not solve this problem. The solution lies in identifying the true source of the heat and ensuring your entire thermal management system is physically capable of handling the applied load.

The 20-Minute Thermal Audit: Moving from Ambient Assumptions to Circuit-Level Control

If your coolant sample reveals a cloudy, green mess—or you discover a restriction after disconnecting a line—you cannot simply straighten the hose and press cycle start. You must fully decontaminate the system. Drain the entire loop. Flush it with a 25% distilled white vinegar solution to dissolve biological buildup. Back-flush the return lines with compressed air at no more than 30 PSI. Replace all particulate filters. Then refill the system with pure distilled water, heavily treated with the manufacturer-approved algaecide. Only after restoring unrestricted physical flow should you begin relying on digital telemetry again.

The wall thermostat may display a comfortable 25°C—that’s a climate report for people. A fiber laser source, however, demands internal stability within a ruthless ±0.5°C window. To achieve that level of precision, you need a daily verification routine that confirms the chiller is genuinely carrying the thermal load.

Step 1: Confirm the Delta-T Between Supply and Return Lines

Delta-T tells the real story. It directly measures how much heat is being removed from your components. If your chiller is set to 22°C but the return line reads only 22.1°C while the laser is operating at full power, you are not effectively cooling the machine. The heat remains trapped inside the chassis. Heat never simply disappears—it accumulates at predictable choke points: the laser source diodes, the cutting head optics, and the drive motors.

If [the delta-T between supply and return lines during a heavy cutting cycle is less than 0.5°C], then [immediately inspect the laser head’s internal micro-channels for blockage, as the coolant may be bypassing the primary heat load].

If [the delta-T rises more than 3°C above the supply temperature], then [increase the chiller’s flow rate or clean the primary heat exchanger fins, because the coolant is absorbing heat faster than the chiller can dissipate it].

Step 2: Calculate Your Dew Point Safety Margin Based on Seasonal Humidity

Summer arrives, the bay doors go up, and humidity in the shop surges. If your cutting head coolant circuit stays fixed at 20°C while the shop dew point rises to 21°C, your optics will start to sweat. Condensation on the protective lens can turn a 4 kW beam into a plasma grenade.

Calculate your dew point margin every day. Invest in an inexpensive digital hygrometer and mount it directly on the machine frame—not on a distant wall. Record the ambient temperature and relative humidity, consult a dew point chart, and set the cutting head circuit at least 2°C above the measured dew point. You give up a small amount of cooling performance, but you eliminate the risk of falling into the dew point trap.

Step 3: Track 24-Hour Fluctuations Before Blaming the Laser Source

When cut quality drops at 2:00 PM, operators are quick to blame the laser source. The beam profile looks unstable, edges develop dross, and the assumption is that the diodes are failing. Before you call for service and spend thousands, record the chiller’s temperature variation over a full 24-hour cycle. More often than not, you’ll discover the chiller is struggling with the afternoon heat load, allowing the coolant to drift by 1.5°C. That seemingly minor shift causes the optical housings to expand, moving your focal point in the middle of a cut.

Scrap Bin Warning: I once lost a $4,500 titanium aerospace job because an operator ignored a tripped thermal switch on the chiller. He reset the alarm, glanced at the shop thermometer, and decided the room felt cool enough to finish the sheet. In reality, the compressor had stalled. The water temperature swung 4°C in twenty minutes, the focal point shifted by a full millimeter, and the laser fused the titanium into worthless slag.

The New Rule: Control the Variation, Protect the Machine

Stop focusing on the room—focus on the circuit. Your laser cutter isn’t just a machine sitting in ambient air; it’s a self-contained thermal ecosystem. The chiller is the heart, the coolant is the blood, and delta-T is the pulse. Control micro-variations, and the system will perform flawlessly for a decade. Ignore them, and you’ll be replacing optics every month.
