I. Introduction

In sheet metal fabrication, the bending process is a crucial step in ensuring product quality and dimensional accuracy. Among the key technical parameters, the parallelism of the press brake plays a decisive role, directly affecting the precision of bending angles and the consistency of finished parts.

Parallelism refers not only to the geometric alignment between the upper ram and the worktable but also to their ability to maintain an even, stable distance under various load conditions. A thorough understanding of the essence of parallelism, its influencing factors, and its interaction with deflection compensation is fundamental to achieving precise, efficient, and stable bending operations.

This article takes a deep dive into the technical concepts of press brake parallelism—exploring the root causes of misalignment, diagnostic methods, and calibration strategies for three mainstream machine types—with the goal of offering sheet metal manufacturers a systematic and scientifically grounded approach to improving processing quality and overall productivity.

II. Foundational Insight: Why Parallelism Is the Lifeline of Sheet Metal Processing

2.1 Precise Definition

Technically speaking, the parallelism of a press brake refers to the condition in which the movement plane of the upper beam (ram) maintains an even and constant distance from the reference plane of the lower worktable across the entire effective bending length—whether at rest or under full load.

To make this concept more intuitive, consider the following analogy:

Think of the press brake’s upper and lower dies as a set of perfectly aligned jaws. Ideal parallelism means that with every “bite” (bend), the upper and lower teeth meet simultaneously and with uniform force, precisely shaping the workpiece.

Once parallelism is lost, this “jaw” falls out of alignment:

• Ideal parallel state: The gap between the ram and the worktable is uniform across the entire length, like perfectly aligned rails. This ensures consistent bending angles from one end to the other.
• Non-parallel state: One end of the ram touches the worktable first while the other still has a gap. The workpiece is then “pressed at an angle,” producing visible taper errors—meaning the bend angles at both ends differ.
• Relationship to crowning: Parallelism ensures a fair “starting line,” whereas crowning compensates for the deflection that occurs “during the race” under load. The two must work in harmony—neither can function effectively without the other.

In essence, parallelism is the absolute prerequisite for bending precision. It is not an isolated parameter but the core indicator of the press brake’s overall health.

2.2 From Technical Metric to Profit Driver: The Triple Cost of Lost Parallelism

How can a seemingly negligible deviation of just a millimeter spiral into a full-blown profit drain? The answer lies in three interrelated categories of cost:

• Quality Cost: The Direct Driver of Scrap Rates When parallelism error reaches 0.1 mm on a 3-meter workpiece, the angular deviation at its ends can exceed 0.5°. In high-precision fields such as aerospace, electronics, or automotive manufacturing, that difference can mean an entire batch’s rejection. These visible defects—tapered bends, uneven angles, failed tolerances—are the most immediate and destructive consequences of poor parallelism.
• Equipment Cost: The Invisible Killer of Longevity Uneven load distribution is every machine’s nemesis. An unbalanced bending process concentrates stress on one side of the cylinders, guides, seals, and dies. This localized overloading accelerates wear and shortens the lifespan of vital components, and in severe cases, can lead to irreversible plastic deformation of the frame or ram—a catastrophic and permanent failure.
• Operational Cost: The Financial Black Hole That Eats into Profits Often underestimated, this includes frequent rework, overtime to compensate for lost time, delivery delays due to quality issues, customer complaints, and even order cancellations. These factors form a hidden but massive financial drain. More critically, they sap team morale, erode operator confidence, and ultimately damage the company’s brand reputation.

In short, controlling parallelism is directly tied to controlling your profit margin.

2.3 Key Concept Clarification: Parallelism vs. Crowning

In industry discussions, parallelism and crowning are often confused. However, they address fundamentally different challenges. Distinguishing between them accurately is the first step toward professional-level operation.

III. Tracing the Source: Uncovering the Five Fundamental Causes Behind Press Brake Parallelism Deviation

3.1 Structural Culprits: Physical Limitations of the Machine

From the day a press brake is built, it enters an endless battle with the laws of physics. Loss of parallelism often originates from these structural “inborn flaws” or accumulated wear over time.

• Mechanical Wear: Continuous heavy-load reciprocation gradually erodes key contact surfaces—such as guide rails, slides, ball joints, connecting rods, and eccentric bearings—like water wearing down stone. This wear is rarely uniform; uneven loading or inadequate lubrication can cause one side to deteriorate faster. Even a minute wear difference of just 0.02 mm between guide rails can result in an angle deviation of ±0.5° on the finished workpiece—a slow, subtle, yet ultimately fatal process.
• Hydraulic Imbalance: For mainstream electro-hydraulic servo press brakes, the synchronization between the two main cylinders, Y1 and Y2, is the very essence of parallelism. Any delay in servo valve response, valve spool sticking due to oil contamination, internal leakage from aged seals, or unequal pipe lengths that cause pressure transmission lag can disrupt the perfect harmony of the twin cylinders. Among these, hydraulic oil temperature is a hidden killer: every 10°C increase in temperature can reduce viscosity by up to 15%, directly impacting servo valve responsiveness and quietly introducing dynamic deviations.
• Frame Deformation: The press brake’s frame serves as the skeleton resisting immense bending forces. In a typical C-frame, the open “throat” inevitably expands under high load, much like prying open the letter “C.” This deformation compromises parallelism between the ram and the bed under stress. On the other hand, an O-frame or closed frame design encloses the forces within a rigid loop, greatly increasing stiffness. Tests show that at equal tonnage and length, the throat opening deformation in a C-frame can be 3–4 times greater than that of an O-frame. That’s why high-precision, high-tonnage press brakes overwhelmingly favor O-frame configurations.
• Foundation Settlement: Perhaps the most overlooked yet devastating factor. Even a factory-calibrated press brake with perfect precision becomes unstable if installed on a weak or unevenly settling foundation. A mere 1 mm difference in ground height between the two ends can amplify into significant angular errors at the end of the ram stroke due to leverage effects. Continuous vibrations, nearby heavy machinery, and groundwater level changes can gradually shift the foundation, subtly undermining the machine’s parallelism reference.

3.2 Static vs. Dynamic Parallelism—The True Determinant of Accuracy

• Static Parallelism: Refers to the geometric alignment between the ram and the bed in an idle or stationary state. It is easy to measure and serves as the starting point for installation and calibration—much like examining an athlete’s posture in a quiet room.
• Dynamic Parallelism: Refers to the machine’s ability to maintain parallelism under real bending load throughout the forming cycle. It reflects the combined effects of frame deformation, hydraulic response, and control system compensation—akin to judging an athlete performing under intense physical stress.

Why doesn’t static perfection equal dynamic precision? Because under immense bending forces—sometimes hundreds of tons—all previously mentioned factors become activated and amplified: the frame flexes, hydraulic oil compresses, and servo valves react with microsecond delays. A response lag of only 0.05 seconds can cause a 0.15 mm displacement difference along the Y-axis, instantly throwing the bending angle off.

Therefore, dynamic parallelism is the ultimate benchmark for a press brake’s true forming capability. Modern high-end CNC press brakes achieve this through ultra-precise linear scales that monitor both ends of the ram thousands of times per second, feeding data back to the CNC controller for microsecond-level closed-loop adjustments—approaching perfect parallelism in real time.

3.3 How Parallelism Affects Other Critical Bending Parameters

Parallelism deviation is never an isolated issue. Like a stone dropped into a calm lake, its ripples spread through the entire accuracy system of the press brake, triggering a series of chain reactions:

• Disrupting the Backgauge Reference: The backgauge relies on a perfectly parallel lower bed as its positioning baseline. When the ram presses down at a slight tilt, it contacts the workpiece at an angle, shifting the effective bend line and introducing systematic flange-length errors in backgauge positioning.
• Reducing Deflection Compensation Effectiveness: Deflection compensation systems—mechanical or hydraulic—are designed to counter the typical “center high, edges low” deformation that occurs under balanced load. If parallelism is already off, the load itself becomes uneven, feeding the compensation system a false starting condition. A tilted ram acting on a pre-curved bed produces chaotic, unpredictable angle deviations, rendering compensation significantly less effective or even counterproductive.
• Corrupting the Material Springback Model: Modern CNC systems rely on accurate material databases and algorithms to predict springback and calculate overbend angles. These computations assume even pressure distribution across the part length. Parallelism deviation breaks this assumption, causing inconsistent springback along the part. Essentially, it feeds the CNC controller distorted data, invalidating its predictive model and resulting in complete angular control failure.

IV. Parallelism Measurement, Diagnosis, and Calibration Procedure

4.1 Preparation Stage: Professional Tool Checklist and Safety Protocols

Precision diagnosis begins with professional tools and uncompromising safety. Before touching the machine, make sure your preparation is flawless—any minor oversight can distort measurement results or even trigger serious safety incidents.

Essential Tool Kit

• Precision Dial/Indicator Gauges: At least two units with a resolution of 0.01 mm or better. They serve as the “eyes” that capture micron-level deviations; fewer gauges won’t allow synchronous comparison across both ends.
• High-Strength Magnetic Bases: At least two, ensuring the setup remains rock-solid on the worktable during measurement, eliminating any drift in readings caused by vibration or accidental contact.
• Gauge Blocks or Parallel Bars: A complete set or a minimum of two blocks of identical height. These are the only reliable instruments for establishing absolute measurement references—any substitute, like regular steel blocks, introduces unpredictable error.
• Lint-free Cloth and Specialized Cleaning Agent: Used to thoroughly clean the worktable and underside of the ram. Always remember: accuracy starts with cleanliness—a single overlooked metal chip can cause a fatal error exceeding 0.02 mm.

Advanced Options

• Laser Alignment System: Provides ultra-high precision, non-contact measurements and quickly evaluates the machine’s dynamic geometric accuracy—ideal for long-stroke, heavy-duty, or ultra-precision systems.
• Electronic Level: Checks both the table’s own level and its absolute alignment relative to the ground, effectively eliminating systematic errors from foundation settling.
• Safety First: Lockout/Tagout (LOTO) Procedure—A Non-Negotiable Rule Before performing any measurement or maintenance, you must rigorously implement the Lockout/Tagout procedure. This goes far beyond simply pressing an emergency stop—it’s a life-critical system that prevents accidental machine activation or unexpected energy release.

Notify: Clearly inform all relevant personnel that the equipment will enter a locked maintenance state.

Shut Down: Follow standard procedures to power down the equipment and control systems.

Isolate: Physically disconnect all energy sources such as the main power switch and hydraulic pumps—this is not a software stop but a true physical isolation.

Lock and Tag: Lock all energy isolation points (e.g., circuit breaker boxes) and attach tags indicating the technician’s name, date, and warning notice. The key must remain under the technician’s personal control.

Release Residual Energy: Ensure hydraulic systems are fully depressurized and moving parts like the ram are safely supported to eliminate gravitational potential energy.

Verify: After completing these steps, attempt to start the machine to confirm that no movement occurs. Only once this verification fails can work safely begin.

3.2 Diagnostic Protocol: The Five-Step Precision Measurement Method

This method is recognized across the industry as the most efficient and comprehensive manual diagnostic protocol. Through systematic positioning and dynamic scanning, it can identify both “taper errors” and “deflection/deformation errors,” giving you a complete picture of machine accuracy.

Cleanroom Preparation: use a lint-free cloth and cleaner to meticulously wipe the entire underside of the ram and the full upper surface of the worktable. Use side lighting to inspect for any visible metal chips, grease, or dust—the success of the entire diagnostic procedure depends on this step.

Point Positioning: Place a magnetic base as close as possible to each side column on the worktable. Adjust the arms so the indicator probes point perfectly vertical to the underside of the ram. Ensure each probe has sufficient preload travel (typically 1–2 mm) to maintain stable, continuous contact throughout the ram’s movement.

Zero Reference Calibration: Switch the machine to manual or setup mode. Place two precision gauge blocks of identical height beneath both probes. Slowly lower the ram until it lightly and evenly touches the blocks. Then rotate both dial faces so their pointers align precisely at “0.” This eliminates all initial offset and establishes an indisputable measurement reference.

Dynamic Scanning: Carefully remove the gauge blocks. Move the ram slowly through its full stroke range (e.g., bottom dead center to top dead center). Record and observe the changes and final difference between the two indicator readings.

• Result Interpretation: Suppose that as the ram rises, the left indicator shows +0.05 mm while the right shows -0.03 mm. The total deviation between both ends is |+0.05| + |-0.03| = 0.08 mm. This value represents the machine’s taper error, which directly leads to a defective workpiece—one end with a larger angle, the other with a smaller one. For most precision bending applications, this deviation should not exceed 0.02 mm.

Center Detection: Keep one indicator fixed and move the other to the exact center of the worktable. Lower the ram again to the reference height used during zero calibration, then record the central indicator reading.

• Result Interpretation:
  • If the center reading is positive (e.g., +0.10 mm) while both ends remain at zero, this indicates a serious issue: the ram center protrudes downward, or the worktable center sags. This often results from long-term overloading or improper usage, leading to permanent ram deformation (Ram Upset).
  • If the center reading is negative, it means the ram center is sagging or the worktable center is convex. This usually reflects the initial preloading of a mechanical deflection compensation system, though it could also signal structural fatigue.

This step is vital—it distinguishes whether the problem originates from dynamic synchronization (taper) or the machine’s static geometry (deformation).

V. Core Skills: Blueprint for Parallelism Calibration Across Three Main Types of Press Brakes

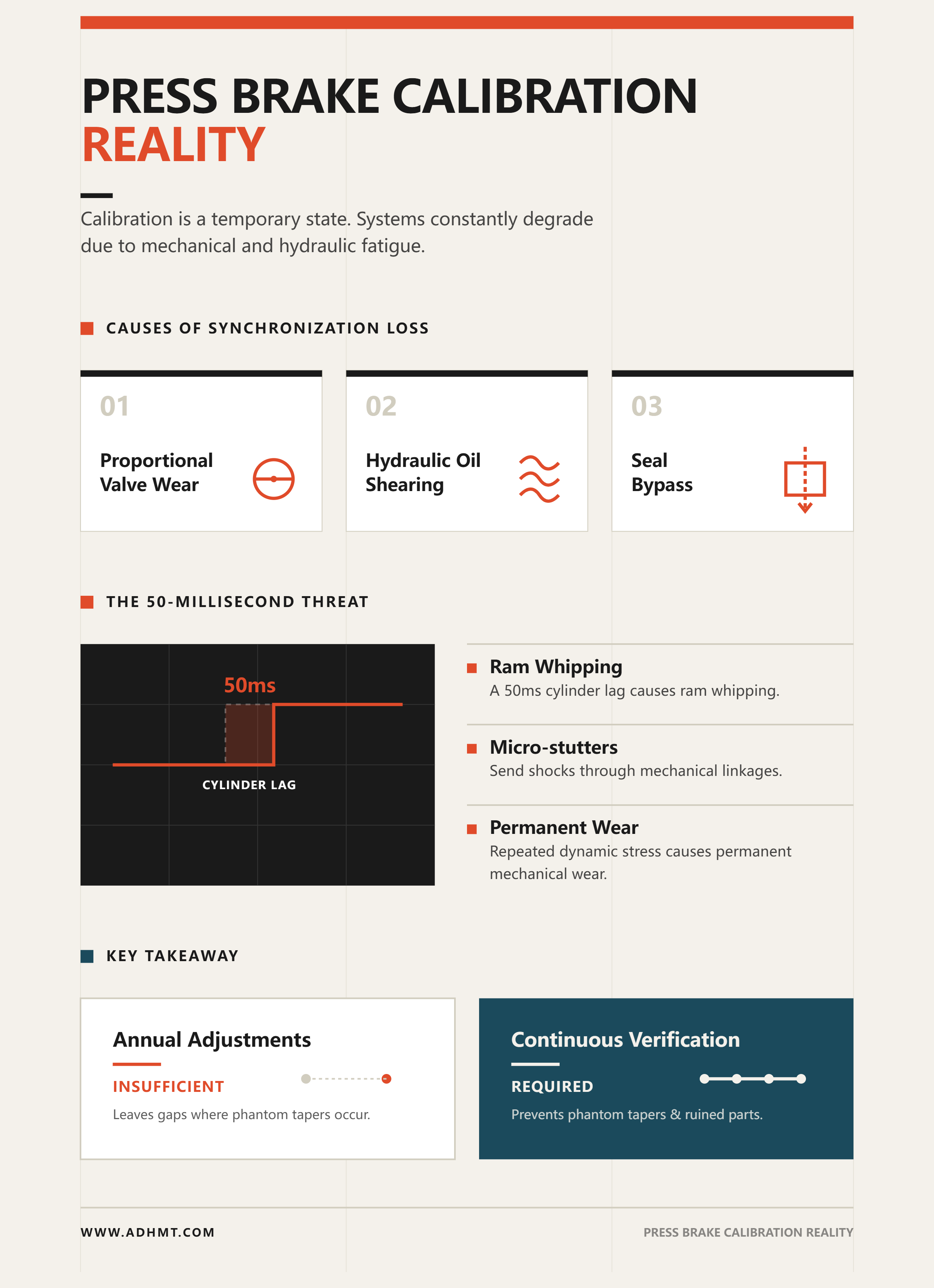

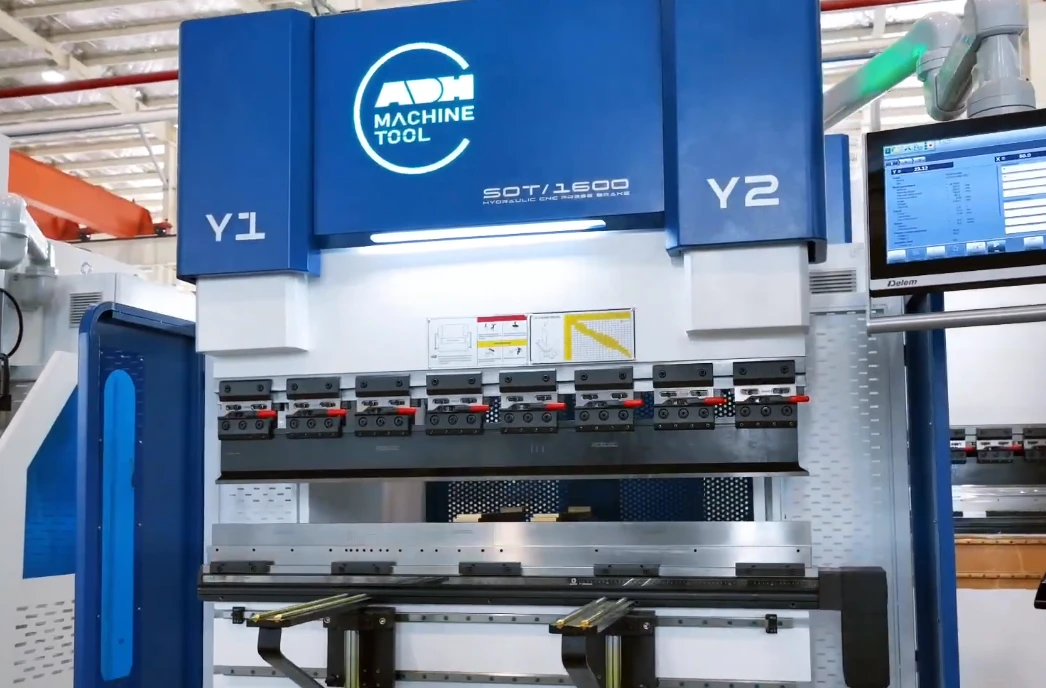

5.1 Hydraulic Press Brakes (Mainstream Models)

Hydraulic press brakes dominate the market today. Their parallelism control technologies can be broadly divided into two schools: the advanced electro-hydraulic servo synchronization method and the classic torsion bar synchronization approach.

Electro-Hydraulic Servo System

This serves as the technological core of modern CNC press brakes. Its operation resembles a precise duet—both graceful and exacting:

• The “Eyes”: High-precision linear scales (installed on both sides of the C-frames) continuously measure the absolute positions of the ram ends (Y1 and Y2 axes) with micrometer-level resolution, updating readings every millisecond.
• The “Brain”: The CNC controller receives positional data from the scales and rapidly compares it with target coordinates.
• The “Muscles”: Based on any detected discrepancy, the controller sends fine adjustment signals to each side’s proportional servo valves, precisely controlling hydraulic flow to achieve dynamic, real-time closed-loop synchronization.
• Calibration Method: Software Parameter Adjustment via CNC Controller — an elegant, fully digital calibration process with no need for wrenches or hammers.
  1. Access Privileged Mode: Following the equipment manual, enter the “Manufacturer,” “Service,” or “Maintenance” mode—typically protected by a password to prevent mishandling.
  2. Locate Calibration Menu: Within the parameter settings, find menus such as “Y-axis Calibration,” “Parallelism Adjustment,” or “Synchronization Parameters.”
  3. Enter Compensation Data: The system displays current compensation values for Y1 and Y2. Use the deviations measured in Chapter 3 to apply corrections—adding positive compensation to the lagging side or negative to the leading side. For instance, if Y1 measures 0.05 mm lower than Y2, input a small positive correction for Y1 or a negative value for Y2, adjusting gradually according to system gain.
  4. Verify and Iterate: After saving parameters, exit setup mode, restart the hydraulic system, and remeasure using the “Five-Step Precision Method.” Validation may require two or three iterations until deviation at both ends falls within the ±0.01 mm tolerance band.

Absolute Cleanliness of Linear Scales

The linear scale is the system’s “retina.” Any surface oil, dust, or micro-scratch can mislead the read head and cause the CNC to apply false compensations. Regularly wiping the scale along its grid direction with lint-free cloth and industrial alcohol is the most cost-effective yet high-return maintenance action to preserve factory-grade accuracy.

Torsion Bar Synchronization System

A classical mechanical synchronization method, this system relies on a robust torsion bar running across the machine’s top. Through linkages, it physically couples both sides of the ram, enforcing synchronized motion.

• Calibration Method: Balancing Mechanical Rigidity and Hydraulic Flexibility
  1. Mechanical Rough Adjustment: Loosen one cylinder’s piston rod locking nut or adjust the length of its linkage connection.
  2. Reference Alignment: Place equal-height gauge blocks under the ram. Jog the hydraulic system so the ram slowly descends and presses evenly on the blocks—this establishes physical parallelism between ram and table.
  3. Mechanical Locking: With the ram parallel, re-tighten the previously loosened nuts to secure mechanical alignment.
  4. Hydraulic Balancing: Because the torsion bar flexes under load, mechanical adjustment alone is insufficient. Fine-tune throttle or balance valves in the hydraulic circuit to equalize cylinder pressure during operation, minimizing torsion-induced distortion.
• Core Challenge: Adjusting mechanics alone fails under dynamic loading, while purely hydraulic corrections are overridden by the torsion bar’s rigidity. Achieving true calibration requires both skill and patience—finding that delicate equilibrium between mechanical constraint and hydraulic compliance.

5.2 All-Electric Press Brakes (High-Precision Models)

All-electric press brakes eliminate hydraulics entirely. Dual servo motors drive the ram through precision ball screws or synchronized belt systems. Their accuracy is software-defined.

Calibration Method: A Purely Software-Based Process

Conceptually similar to the electro-hydraulic version, but focused on tuning synchronization parameters between two independent servo motors driving the Y1 and Y2 axes. Dual rotary encoders monitor and feedback motor positions at extremely high frequencies for closed-loop control.

The Power of Electronic Cam Profiles: Advanced systems allow engineers to edit individual servo-axis cam curves, enabling nonlinear compensation at specific travel points. This powerful tool corrects complex errors, such as uneven screw wear in commonly used stroke zones, with exceptional accuracy.

5.3 Mechanical Press Brakes (Traditional Models)

Mechanical press brakes use a flywheel and clutch to drive eccentric linkages (Pitmans) that move the ram. Their parallelism calibration is a purely manual mechanical skill.

• Calibration Method: Craftsman-Level Precision Adjustment — at both ends of the ram, large ball-head screws or eccentric sleeves allow fine height tuning between the ram and the linkages.
  • “Stepwise” Adjustment Technique: This meticulous process demands patience. Make micro-adjustments—turning the screw or sleeve only 1/8 of a turn or one nut face each time—then remeasure parallelism. Over-correction is the most common mistake among beginners, often worsening the issue and causing endless back-and-forth tweaking. Much like tuning a musical instrument, achieving harmony requires repeated fine adjustments, measurements, and test bends until perfection is reached.

5.4 [Quick Reference Table] Comparison of Calibration Methods Across Different Press Brake Types

VI. Advancing the Craft: From Reactive Maintenance to Proactive Optimization and Intelligent Control

6.1 Synergistic Strategies Between Parallelism and Other Parameters

Parallelism and Deflection Compensation: This is a classic—and decisive—interaction. The sole purpose of a deflection compensation system is to counteract central deformation under a uniform load. If parallelism is off, the load will be uneven from the very beginning—akin to building a skyscraper on a tilted foundation. The result is inevitably disastrous.

Three-Step Verification and Optimization Protocol:

1. Basic Calibration (Short Piece Test): Once perfect parallelism has been established, use two identical short test pieces positioned near the Y1 and Y2 columns. Bend both and ensure their angles match exactly. This serves as the final confirmation of your parallelism calibration.
2. Center Verification (Short Piece Test): Using the same short piece, perform a bend at the exact center of the worktable. If the central angle is larger than at the ends, the deflection compensation is insufficient; if smaller, the compensation is excessive.
3. Full-Length Optimization (Long Piece Test): Finally, use a long workpiece covering at least 80% of the table length for testing. Based on angle consistency along the full length, fine-tune the deflection compensation curve until a uniform and precise angle is achieved from end to end.

Remember this golden rule: Perfect parallelism must come before effective compensation. Skipping the first step and adjusting deflection compensation prematurely only introduces new and more complex errors.

• Parallelism and Material Springback: For materials with high strength and resilience—such as AHSS and stainless steel—predicting springback is the holy grail of modern CNC bending. All advanced angle-measurement systems, material databases, and springback compensation algorithms depend on one absolute assumption: bending force and radius are evenly distributed along the length of the part. A deviation in parallelism completely breaks this assumption, causing irregular springback variations that even the most sophisticated CNC systems cannot correct. Thus, absolute parallelism is the essential gateway for any high-level springback algorithm. When working with demanding high-strength materials, it is often wiser to return to basics and verify parallelism under load with a dial gauge instead of endlessly tweaking springback parameters.
• Parallelism and Bending Speed: Pursuing higher bending speeds directly improves efficiency—but also challenges the synchronization system. At high downward speeds, the servo valve’s response time and hydraulic oil inertia become critical factors that can instantly disrupt Y1/Y2 synchronization. If the finished parts show angle inconsistency after speed increases, it likely indicates the system has reached its dynamic response limit. The wisest move here is tactical speed reduction: slightly reducing the descent speed—especially during the final approach before contact—grants the closed-loop control system the extra milliseconds it needs to make precise adjustments. This trade-off represents professional wisdom: sacrificing minimal efficiency to secure decisive precision.

6.2 Intelligent Control

The extraordinary accuracy and stability of modern high-end press brakes stem not from stronger steel, but from smarter “neural systems.” This control network operates like an unerring, tireless expert, safeguarding parallelism every microsecond.

• Closed-Loop Control: This is the technological soul of electro-hydraulic servo press brakes. Three core components form a perfect real-time feedback loop:
  • Eyes (Linear Scales): Mounted on C-frames fixed to the worktable, ultra-precise linear encoders act as two unfading rulers, reporting the actual position at both ends of the ram thousands of times per second with micrometer (µm) resolution.
  • Brain (CNC Controller): It compares the live position signals from both sides with programmed targets. Upon detecting even a 0.001 mm deviation, it instantly computes a corrective command.
  • Arms (Proportional Servo Valves): Receiving the controller’s microsecond-level command, they adjust the hydraulic oil flow to and from the Y1 and Y2 cylinders with extreme responsiveness, enabling real-time correction of the ram’s position and alignment.

This “sense–decide–act” loop operates continuously at speeds far beyond human reaction time, ensuring that even under massive tonnage and external disturbances, the ram remains perfectly parallel in motion—constantly corrected, never drifting.

• Temperature Compensation: Often overlooked, this function showcases a top manufacturer’s engineering excellence. Hydraulic oil viscosity is highly temperature-sensitive; from a cold start to hours of operation, oil temperature may rise by 30–40°C, causing significant viscosity reduction and altering servo-valve response. Premium systems include oil temperature sensors feeding real-time data to the CNC controller, which automatically applies an internal compensation curve and dynamically adjusts servo-valve gain parameters. This allows the machine to self-calibrate across the full range of operating conditions—whether on a cold morning or during intense afternoon production—ensuring consistent accuracy at all times. Such intelligence marks the line between a “good” machine and an “outstanding” one.

6.3 Preventive Maintenance for Parallelism

• Daily (Before Shift): 5-Minute Morning Inspection
  • Visual Check: Walk around the machine to inspect Y1/Y2 cylinders, servo-valve blocks, and major hydraulic connections for signs of oil leakage. Any leakage indicates potential instability in pressure control.
  • Guideway Lubrication: Confirm the automatic lubrication system is functioning and oil levels are sufficient. Ensure the guideway surfaces show a continuous, even oil film.
• Weekly: 15-Minute Quick Check
  • Two-Point Sampling: Using a pair of precision gauge blocks or testing bars, perform a quick parallelism check at both ends of the worktable. This enables early detection of any significant deviation trends.
  • Tightening Inspection: Use a torque wrench to confirm that all critical fasteners—such as those securing the ram, linkage, and linear scale heads—are properly tightened, preventing loosening due to vibration.
• Quarterly: 60-Minute In-Depth Diagnosis
  • Comprehensive Measurement: Follow the “Five-Step Precision Measurement Method” described in Chapter 3 to perform a full static and dynamic parallelism assessment.
  • Data Logging: Record all measurement results in the Equipment Accuracy Health Log. This log becomes an invaluable resource for tracking performance degradation, predicting overhaul timing, and assessing the impact of operational practices.
• Annually: Professional System Evaluation
  • Expert Consultation: Invite the equipment’s original manufacturer or a certified service provider to perform a comprehensive deep calibration and system evaluation. This process should include verifying the dynamic response of the servo valves, using advanced instruments such as laser interferometers to recalibrate the linear encoders, and assessing whether the machine frame shows any signs of permanent deformation.
  • Hydraulic System Renewal: Depending on equipment workload (typically recommended every 2,000–4,000 operating hours) or at least once a year, completely replace the hydraulic oil and all filter elements. Clean hydraulic fluid serves as the lifeblood of the entire synchronization system, ensuring its stable and reliable performance.

VII. Troubleshooting Deep Dive: Common Pitfalls, Diagnostics, and Real-World Cases

7.1 Three Major Calibration Traps—and How to Avoid Them

Pitfall 1: Operators proudly fine-tune the slide ends in a no-load state with a dial gauge, reaching a deviation of less than 0.01 mm. Confident in their precision, they start production—only to find that the parts are still scrap.

• Root Cause: This kind of calibration is like fine-tuning an F1 car in a quiet garage without ever considering the extreme centrifugal forces it faces at racing speed. No-load alignment completely ignores what happens under real bending pressure—elastic deformation of the frame, the compressibility of hydraulic oil, and variations in servo response under dynamic load. That flawless adjustment you achieved in static conditions disappears the very moment full force is applied.
• Avoidance Strategy: Adopt dynamic measurement. Even without costly tools like a laser alignment system, perform a simulated load test. A simple but effective method: place two thick, short steel blocks (not precision gauge blocks) at both ends, lower the ram, and apply roughly 50%–80% of normal bending force. Measure and fine-tune under pressure. This will reveal the machine’s true “behavior” under load—making your calibration meaningful in real production.

Pitfall 2: Many technicians habitually measure only at both ends of the worktable. Once both ends are perfectly parallel, they assume everything is fine—overlooking a potentially fatal issue.

• Root Cause: This “two-point line” measurement approach completely ignores possible permanent deformation—a “ram upset” or “center sag”—caused by prolonged overload or improper usage. You might achieve perfect end-to-end parallelism while the center is bowed or sunken, leading to inconsistent bend angles along the part’s length.
• Avoidance Strategy: Always perform multi-point diagnostics. Follow strictly the “Five-Step Precision Measurement” process introduced in Chapter 3. After checking both ends, add a center-point measurement. The center reading—once both ends are zeroed—will give unmistakable evidence of whether the machine’s “spine” is healthy.

Pitfall 3: When parallelism repeatedly drifts out of tolerance, many operators fall into the trap of endlessly tweaking CNC compensation parameters. Accuracy temporarily returns—but soon fails again.

• Root Cause: This is a classic case of “symptom treatment” maintenance—like giving a pneumonia patient cough syrup. Repeated parameter adjustments merely mask the underlying hardware issues. The real “infection” could be internal hydraulic leakage from worn seals, mechanical shift due to loose guide clamps, or signal drift from a dirty encoder head—none of which can be fixed with software alone.
• Avoidance Strategy: Establish a failure escalation logic. If accuracy can’t hold for more than one shift after calibration, stop endless parameter tweaking. Escalate the issue from “adjustment” to “investigation.” Systematically inspect hydraulic integrity, mechanical fastening, and sensor cleanliness/stability. Remember, software compensation is for fine-tuning—not for fighting ongoing mechanical degradation.

7.2 Rapid Troubleshooting Guide (FAQ)

Here are the three most common on-site scenarios, along with clear diagnostic logic to help you quickly pinpoint the true culprit.

Scenario 1: Perfect parallelism—but bending angles are still off?

• Possible Cause 1: Incorrect deflection compensation. Parallelism ensures consistent angles between both ends, whereas deflection compensation ensures consistency between the center and ends. Check if your compensation value is too high or too low, creating a “bulge-in-the-middle” or “lifted edges.”
• Possible Cause 2: Tool wear. This is a subtle culprit. With prolonged use, the punch and die edges—especially in the commonly used central region—wear down, altering the actual bending radius and producing larger angles.
• Possible Cause 3: Material variation. Inspect your sheet material for uneven thickness, hardness variation, or rolling-grain orientation differences—each of which directly translates into angular deviations.

Scenario 2: Parallelism adjusted—but accuracy still drifts over time?

• Possible Cause 1: Internal hydraulic leakage. The number-one suspect. Aging piston seals or valve group gaskets can cause slow, nearly invisible pressure loss on one cylinder side. As a result, the once-perfect alignment quietly disappears overnight.
• Possible Cause 2: Loose mechanical connections. The intense shocks and vibrations of bending may loosen bolts on the ram guide plates, locking nuts in the linkage mechanism, or even screws securing the encoder heads. Every impact subtly shifts your machine’s precision baseline.
• Possible Cause 3: Sensor signal contamination. The linear encoder is your CNC’s “eyes.” If coated with oil or dust, or if the reading head shifts slightly, it starts feeding false data to the system—creating “phantom” compensation cycles and chaotic behavior.

VIII. Conclusion

This article provides a comprehensive analysis of the critical role that parallelism plays in press brake sheet metal processing. It explores the technical definition of parallelism, its interplay with deflection compensation, and identifies five fundamental causes of parallelism deviation—mechanical wear, hydraulic imbalance, frame deformation, and foundation settlement among them.

By contrasting static and dynamic parallelism, the discussion highlights the importance of maintaining true accuracy under real-world operating loads. The paper also presents a detailed five-step methodology for professional measurement, diagnosis, and calibration of parallelism, along with key calibration practices and distinctions among hydraulic, electric, and mechanical press brakes.

You can explore the specifications for these machine types in our Brochures. Advanced sections delve into the coordinated optimization of parallelism with factors such as deflection, material spring-back, and bending speed, as well as modern intelligent control features like real-time feedback loops and temperature compensation.

Finally, it offers practical troubleshooting guidance for common issues and demonstrates, through real-world case studies, how scientific calibration can directly enhance both production efficiency and scrap reduction.

Parallelism is the lifeline of bending accuracy and must never be overlooked. To ensure long-term equipment stability and consistent machining quality, manufacturers are strongly encouraged to adopt systematic measurement and maintenance programs.

For expert parallelism inspection, diagnostics, and calibration services—or for more comprehensive support in sheet metal bending technology—please contact us. With extensive industry experience and advanced technical capabilities, ADH is ready to deliver customized solutions that elevate your sheet metal processing to the next level.
