I. Introduction

Building a professional-grade laser cutting machine is a comprehensive journey through the heart of precision engineering, mechanical design, and electronic control.

This guide will take you beyond the basics, breaking down the entire complex process with clarity. We’ll start with achieving sub-millimeter geometric precision in the machine frame, delve into making informed decisions among various control system options, and master essential techniques for optical path alignment and safe deployment of high-voltage power systems.

In addition, the guide provides an in-depth analysis of strategies for integrating critical auxiliary systems, details the use of specialized software for advanced parameter configuration and optimization, and ultimately ensures reliable operation in compliance with Class 4 laser safety standards. This is more than just a detailed blueprint for turning a bill of materials into a fully functional, precision cutting tool—it’s your ultimate roadmap to mastering this technology and transforming your ideas into powerful manufacturing capabilities.

If you want to explore industrial-grade solutions, check out the Single Table Fiber Laser Cutting Machine and Double Table Fiber Laser Cutting Machine for advanced capabilities.

Ⅱ. Core Deconstruction: Sourcing Components Like an Engineer

Most “full-kit” packages on the market hide cost-cutting measures: undersized guide rails, underpowered controllers, or minimal power supply capacity. To build a machine capable of delivering stable, profitable output over the long term, you must abandon the “Lego set” mindset and think like an engineer—know exactly where every screw goes and why.

2.1 Mechanical Frame System (The Skeleton)

Physically, laser cutting is like “sprinting with a flashlight.” The laser head is very light (usually <500 g) but highly sensitive to acceleration-induced inertia. The rigidity of the frame determines whether your circles are truly round and whether your straight lines remain perfectly straight.

• Frame Rigidity: Say No to the “Noodle Effect”
  • X-Axis (Gantry Beam) Rule: This is the widest horizontal span of your machine, carrying the laser head as it races left and right. If your cutting width exceeds 30 cm, you must use 2040 V-Slot aluminum profile (mounted vertically so the 40 mm face is perpendicular to the ground). Compared to 2020 profile, 2040 offers roughly 8× greater resistance to bending. Many budget kits use 2020 for the X-axis, which causes slight vibration during high-speed direction changes—visible as jagged edges along cuts.
  • Y-Axis (Base Frame): Standard 2020 profiles are sufficient here since they lie flat on the work surface, with the table providing supporting rigidity.
• Motion Transmission: The Cost-Performance Showdown – Pulleys vs. Linear Rails
  • POM V-Wheels (Polyoxymethylene): This is the preferred choice and the essence of the OpenBuilds ecosystem. Paired with eccentric spacers for tension adjustment, these hard, self-lubricating POM wheels deliver micron-level smoothness. Their greatest advantage is virtually zero maintenance, and they’re largely unaffected by dust.
  • Linear Rails (e.g., MGN12H): A common trap for beginners. While they theoretically offer higher precision, they demand an extremely flat mounting surface. Even slight warping in the aluminum profile can cause the carriage to bind. In environments with wood dust or smoke, the ball bearings are prone to jamming unless you maintain full industrial-level sealing. Unless you’re aiming for speeds over 1000mm/s, steer clear of linear rails.
• Custom Connectors – The “Silent Killer” If you plan to 3D print your connectors, never use PLA. Stepper motors often reach surface temperatures of 50–60°C, at which PLA undergoes creep, gradually loosening belt tension over weeks and ruining precision. Use PETG or ABS instead. Also, in your slicer software, set “Hole Horizontal Expansion” to 0.1mm; otherwise, bearings will be extremely difficult to fit snugly.

Refer to our brochures for detailed mechanical frame specifications from industrial-grade machines.

2.2 The Nervous System

The electronics define the true line between a “toy” and a “production tool.” A well-designed nervous system can push even a modest mechanical setup into a whole new performance class.

• Brain (Controller): 8-bit Is Over
  • Arduino Uno + CNC Shield: Completely obsolete. Its 8-bit processor lacks the computing power to handle the continuous, high-volume G-code stream needed for high-speed raster engraving, resulting in frequent micro-pauses and visible burn marks when doing photo engravings.
  • MKS DLC32 V2.1: The current best answer. Equipped with a 32-bit ESP32 chip, it offers surplus processing power and built-in web access. This means you can ditch the USB cable and upload G-code via Wi-Fi through your browser—a critical convenience if your computer isn’t kept in a dusty garage.
• Muscles (Motors & Drivers): Balancing Silence and Strength
  • Motor Choice: Use standard NEMA 17 (42-40), with a body length of 40mm or 48mm. Avoid the 24mm “pancake” variants—these lack torque, leading to missed steps during rapid stops, potentially ruining an entire project.
  • Drivers & Homing: Go for TMC2209. Its StealthChop silent mode lets you work in an apartment without disturbing neighbors. But avoid “sensorless homing.” Laser heads are too light for accurate collision detection, often leading to damaged limiters or incomplete homing. Use reliable physical limit switches for industrial-grade accuracy.

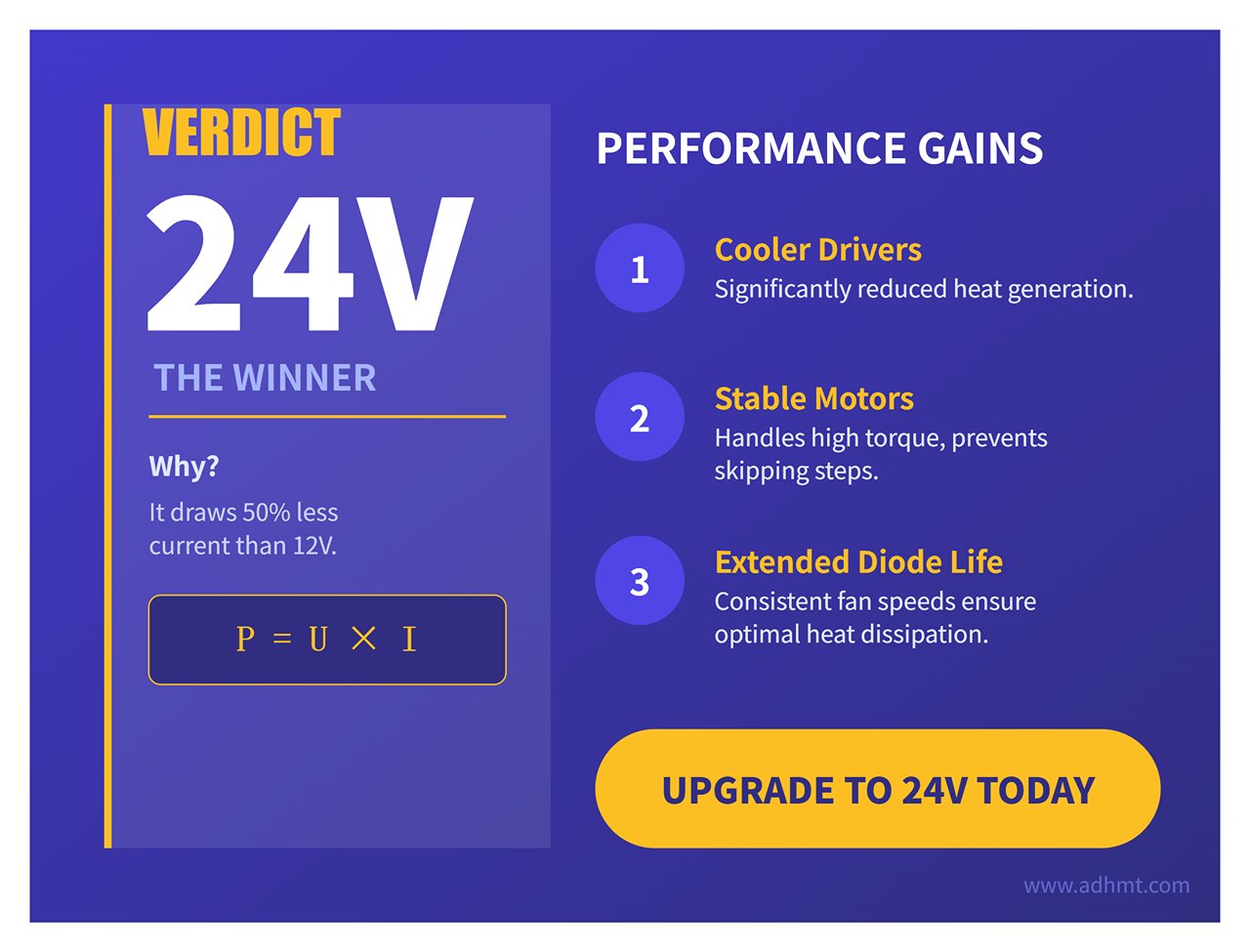

• Heart (Power Supply): The 12V vs 24V Decision
  • Recommendation: Go 24V without hesitation.
  • Physics Rule: From the formula (P = U × I), for equal power, a 24V system draws only half the current of a 12V system. This means drivers run cooler, and motors handle high torque without skipping steps. More importantly, laser module fans run more consistently at 24V, improving heat dissipation and extending the life of expensive laser diodes.

2.3 Procurement List & Budget Grades (2025 Reference Prices)

Before ordering, be aware of the biggest industry lie: inflated power ratings. Listings on Taobao or AliExpress claiming “40W laser” or “80W laser” usually refer to input power (power from the outlet), not the optical output power that actually determines cutting capability.

Truth Conversion Table:

• Labeled 40W input (≈) 5W–5.5W output – Suitable for cutting 3mm plywood and mainly engraving.
• Labeled 80W input (≈) 10W output – Comfortably cuts 6mm plywood; best value for money.
• Labeled 130W+ input (≈) 20W output – Quad-beam setup; can cut 10mm pine, but comes at a higher price.

⚠️ Warning: At present physical limits, a single diode outputs about 6W. Any claim of “single diode 10W+” is pure marketing fiction.

📋 Practical Configuration Chart

Next Step: When your deliveries start arriving, resist the urge to immediately assemble. First, use your 3D printer to make a set of 20×20mm calibration cubes. If your printer isn’t accurate, printed connectors will make your laser cutter structurally “fragile” from the start. Calibrate your tools—next chapter, we move into hands-on assembly.

III. Project Planning

3.1 Goals and Budget Analysis

The first step is to honestly assess what you aim to achieve with your machine and how much you are willing to invest. The answers to these questions will shape every decision that follows.

(1) Defining Your Goals

The intended use of the machine is the single most important factor influencing its design. We can broadly categorize goals into two types:

1) Personal Creative Projects

This category is ideal for hobbyists, artists, and makers. The primary goal here is to learn and create unique items. In this case, the thrill of building and experimenting may outweigh the need for speed. While accuracy is still necessary, minor imperfections are often acceptable. The machine’s stability should be sufficient to deliver consistent results on smaller, one-off tasks.

2) Business Production and Manufacturing

When the machine is used as a commercial tool, the requirements change significantly. Repeatability, speed, and reliability become critical for efficiency and profitability. The machine must deliver consistent precision and robust stability to handle longer production runs without deviation.

(2) Budget Tiers

3.2 Defining Key Design Parameters

With clear goals and a set budget, you can now specify the machine’s technical parameters. These specifications will serve as the engineering blueprint for your build.

(1) Effective Working Area

The working area determines the maximum size of materials you can process and should be based on the typical dimensions of your projects.

Small: Ideal for compact crafts, jewelry, or engraving small objects. This size allows for a lightweight, portable frame, often constructed from 2020 aluminum profiles.

Medium: A versatile size suitable for a broader range of projects. Larger spans require a sturdier frame to prevent sagging and deformation; heavier profiles like 4040 aluminum extrusions are recommended.

(2) Structural Rigidity Requirements

A rigid frame is essential for precision. It resists vibrations and inertial forces generated by the moving gantry, especially at high speeds.

For machines intended for high-speed engraving or those using laser tubes of 60W or above, structural rigidity is critical. We recommend using aluminum profiles with a wall thickness of at least 2.0mm, reinforced with steel angle brackets and gantry plates to minimize frame deformation.

(3) Desired Cutting/Engraving Precision

Precision measures how closely the machine’s output matches your digital design files. Defining your target level of accuracy will guide your choice of motion system components.

1) Standard Precision (±0.3mm): This can be achieved using V-slot wheels on aluminum extrusions, standard open-loop stepper motors, and a well-constructed frame.

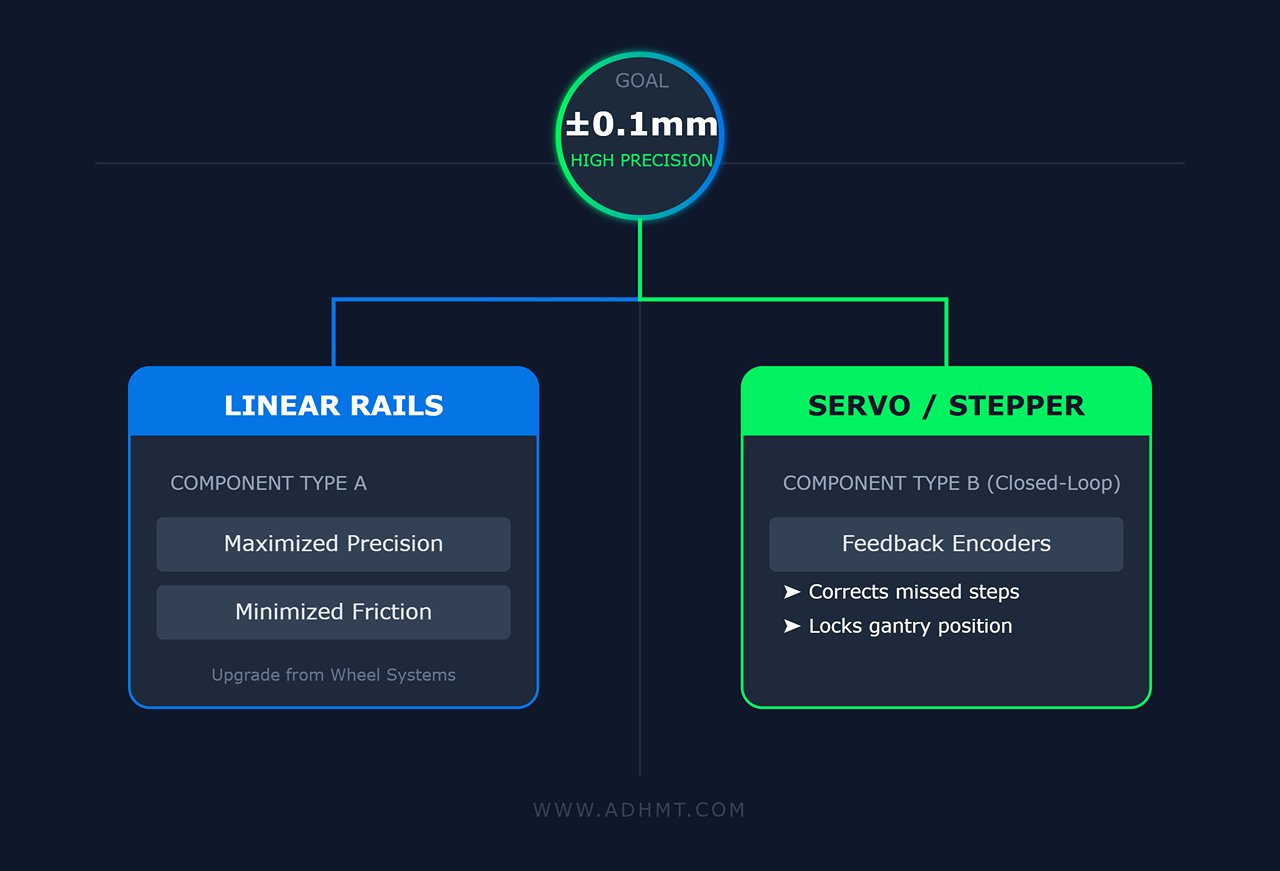

2) High Precision (±0.1mm or better): Achieving this level of accuracy requires investing in higher-quality components, including:

• Linear Rails: Offer significantly greater precision and lower friction compared to wheel-based systems.
• Closed-Loop Stepper Motors or Servo Motors: These systems feature feedback encoders to correct missed steps, ensuring the gantry always remains in the correct position.

(4) Target Materials for Processing

The types and thicknesses of materials you plan to cut are the primary factors in determining the required laser power.

1) Engraving and Thin Materials: A 40W laser is sufficient for engraving most materials and cutting thin acrylic or wood (e.g., ≤3mm).

2) Cutting Thicker Materials: Reliable and clean cutting of thicker materials demands more power. For example, a single-pass cut through 8mm acrylic or plywood typically requires a 60W or higher laser tube. More powerful lasers enable faster cutting speeds and cleaner edge finishes.

Ⅳ. Material and Component Preparation

4.1 Laser Source

The laser source is the core component that generates the high-energy laser beam. Its performance directly affects cutting capacity (such as the type and thickness of materials it can cut), cutting quality, and processing efficiency.

Function: Generates laser beams with specific wavelength, power, and beam quality.

Common Types:

• CO2 Laser: Emits infrared laser at about 10.6μm, suitable for a variety of non-metal materials and some metals.

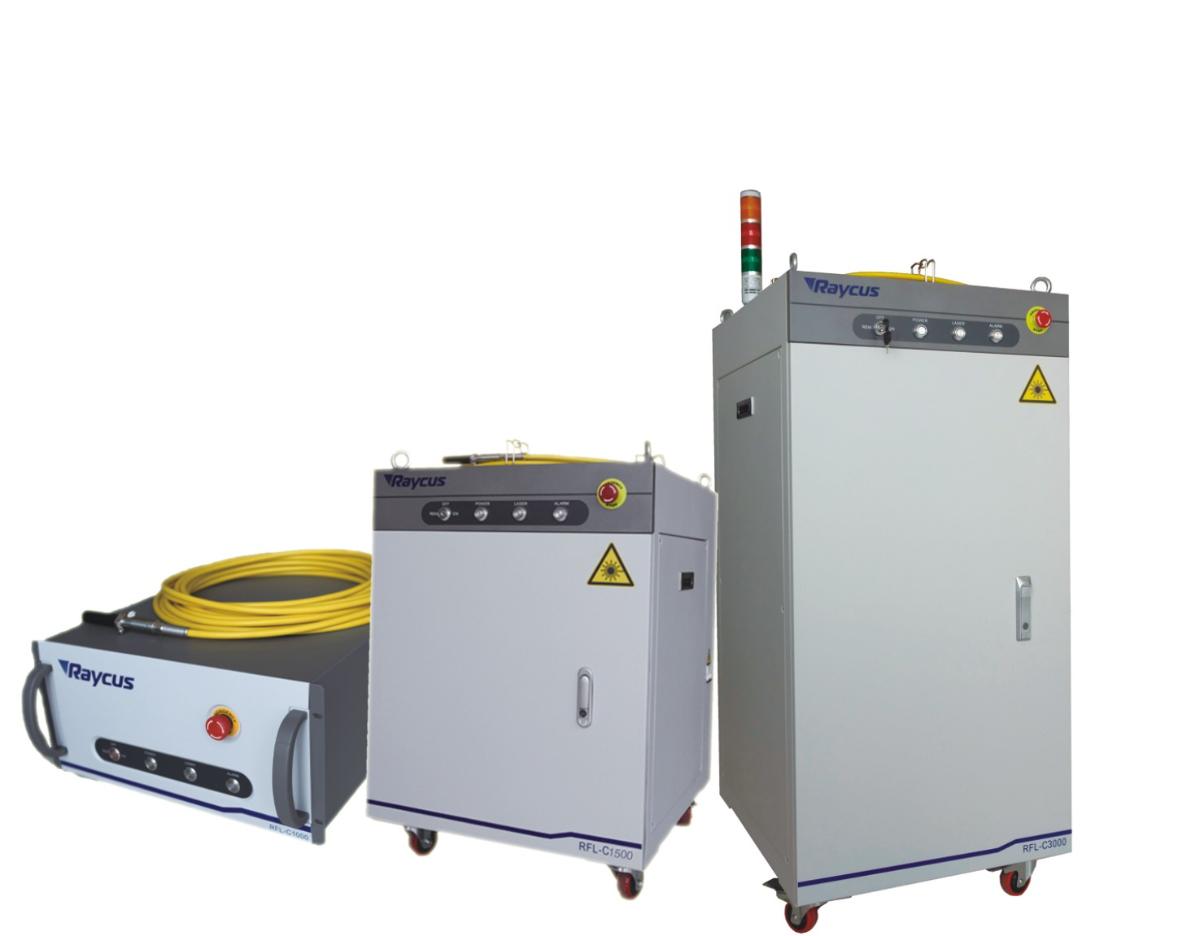

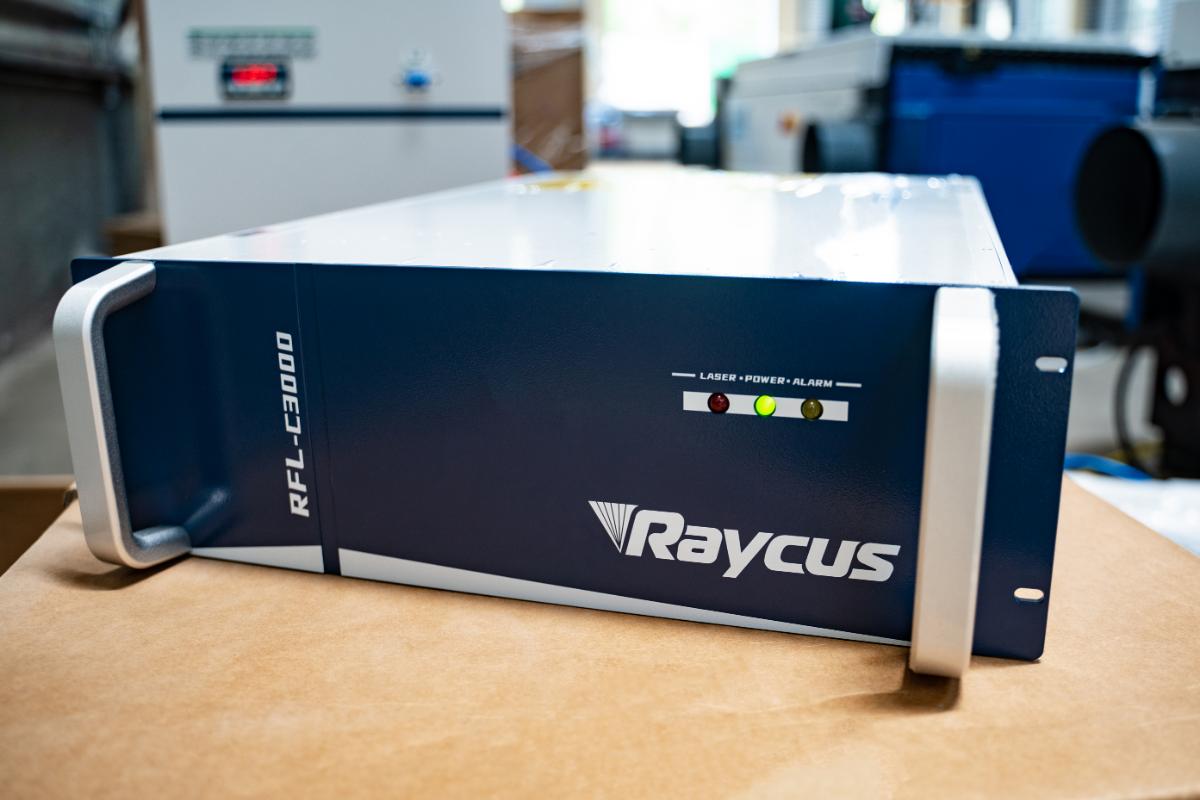

• Fiber Laser: Emits laser at about 1.06μm, offering high electro-optical conversion efficiency and superior beam quality, especially for high-speed, high-precision cutting of metals. It has become the mainstream equipment for metal cutting.

4.2 Optical System

The optical system precisely transmits, shapes, and focuses the laser beam onto the workpiece.

Function: Guides the laser beam, adjusts beam parameters (such as diameter and divergence angle), and focuses the beam into a high-power-density small spot.

Key Components:

• Mirrors: Change the propagation direction of the laser beam.
• Beam Expander: Adjusts the diameter and divergence angle of the beam for optimal focusing.
• Focusing Lens: Concentrates the beam onto the workpiece, creating the high-energy focal point needed for cutting, usually integrated into the cutting head.
• Protective Lens: Shields the focusing lens and other precision optical components from debris and smoke generated during cutting.

4.3 Motion System

The motion system drives the cutting head (or worktable) along preset paths, enabling precise two- or three-dimensional cutting.

Function: Controls the exact position and speed of the cutting head or workpiece along the X, Y, and Z axes (some systems also include rotary axes).

Main Components:

• Drive Motors: Typically servo motors (for high precision and dynamic response) or stepper motors (more cost-effective, suitable for simpler applications).
• Transmission Mechanisms: Such as gear racks, ball screws, or timing belts, converting rotary motion from the motor into linear motion.
• Linear Guides: Provide precise guidance and support for moving parts.

4.4 Control System

The control system is the "brain" of the laser cutting machine, coordinating the orderly operation of all components.

Function: Interprets machining programs (usually G-code), controls the motion system’s path, speed, and acceleration, adjusts the laser’s power and timing, and manages auxiliary gas flow and switching.

Key Components:

• CNC Controller: The core processor executing control algorithms.

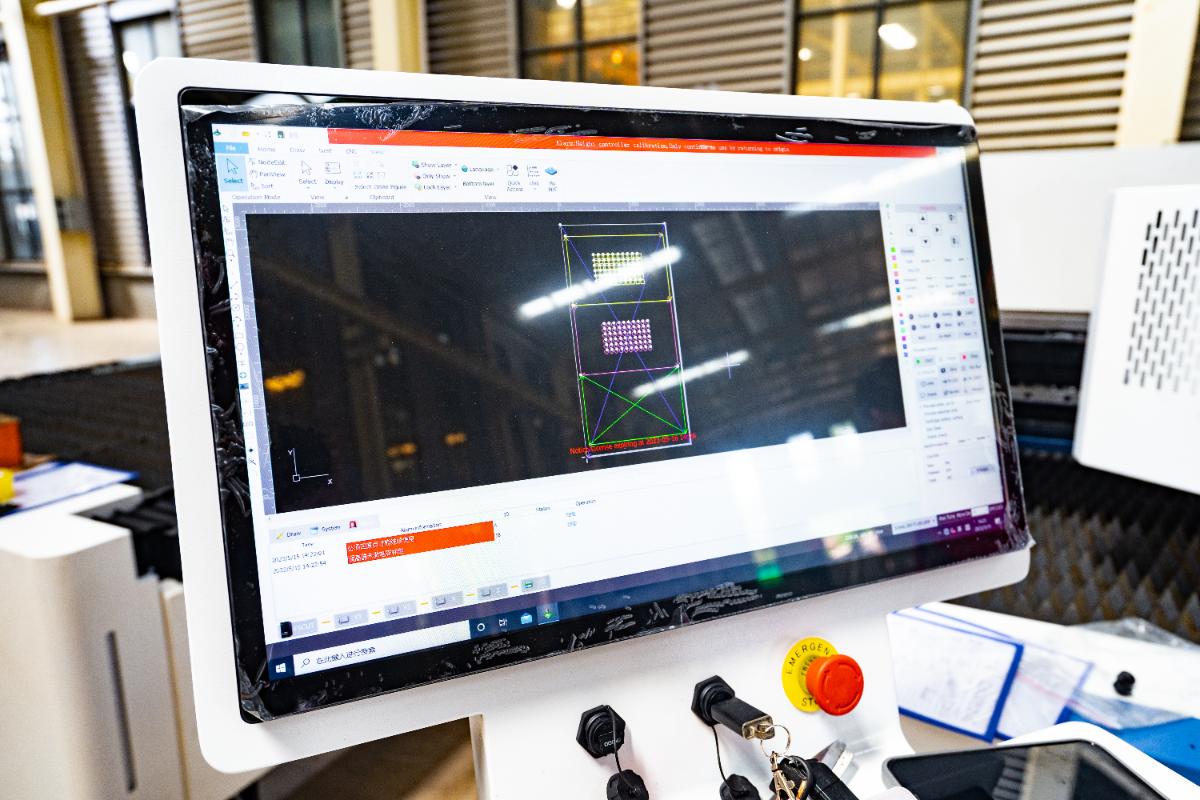

• User Interface: Allows operators to input commands, monitor processing status, and adjust parameters.
• Drivers: Amplify control signals to drive the motors.
• Sensors: Such as limit switches, encoders, and height sensors (for auto-focusing), providing real-time feedback.

4.5 Machine Bed/Frame

The machine bed provides a solid foundation for all other components. Its rigidity and stability are crucial for precision and equipment longevity.

Function: Supports and secures the laser source, optical system, motion system, worktable, and effectively absorbs vibrations generated during processing.

Materials and Structure: Typically constructed from high-strength welded steel (stress-relieved by annealing), cast iron (for ultra-precise machines), or granite, ensuring high rigidity and excellent thermal stability.

Ⅴ. Detailed Steps for Assembling a Laser Cutting Machine

5.1 Preparation

Tool and Consumables Checklist

Assembling a laser cutting machine requires various general and specialized tools, including:

(1) Manual Tools

Complete set of screwdrivers (Phillips, flathead, hex), adjustable wrenches, socket wrenches, wire cutters, crimpers, needle-nose pliers, wire strippers, utility knife, tape measure, try square, and spirit level.

(2) Electrical and Welding Tools

Soldering iron and solder wire (preferably an adjustable-temperature soldering station), multimeter (for circuit continuity and voltage measurement), heat shrink tubing, and heat gun.

(3) Other Auxiliary Materials

Cable ties, label stickers (for cable identification), markers, cleaning cloths, and lubricant (for rails and other parts).

Be sure to check every component against the bill of materials (BOM) or design drawings to confirm that all parts are present, undamaged, and meet specifications.

5.2 Frame Assembly

The frame is the basic structure of the laser cutting machine, and its stability and precision directly impact the final processing quality.

Frame Connection Methods

As per the design drawings, use bolts, nuts, or rivets for secure assembly.

(1) Leveling:

Use a spirit level at various points on the frame to ensure the entire platform is level. If necessary, add shims at the feet for fine adjustments.

(2) Vertical and Right-Angle Calibration:

Check the perpendicularity of adjacent frame elements with a try square. For rectangular frames, measure both diagonals to ensure equal length, confirming the structure is square. Any inaccuracies can cause abnormal noise, jamming, or even damage during motion system operation.

5.3 Motion System Installation

The motion system primarily ensures precise positioning of the laser head along the X and Y axes.

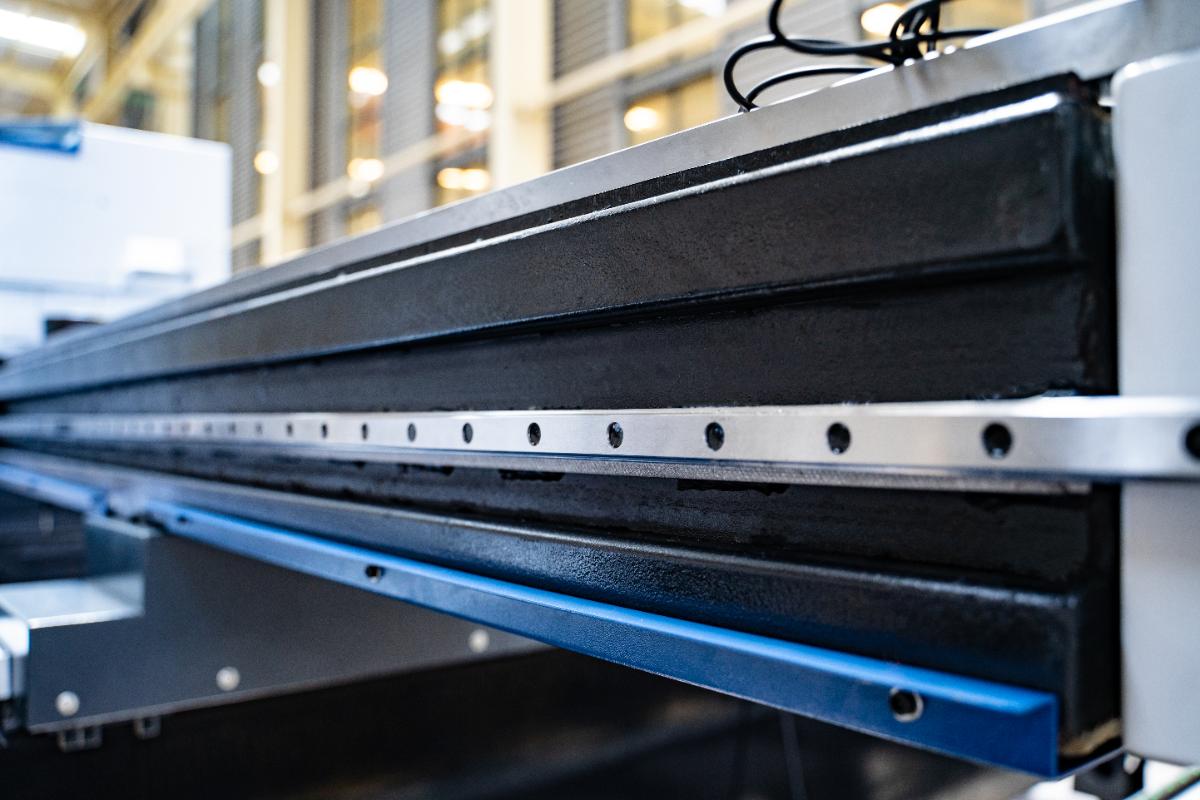

Installing Linear Rails and Carriages

X and Y Axis Rails: Secure the rails in the designated frame positions according to the design drawings.

Carriage Installation: Carefully slide the carriages onto the rails, taking care not to let ball bearings (for linear square rails) fall out. After installation, the carriage should slide smoothly without sticking.

Assembling Drive Motors and Transmission Mechanisms

(1) Motor Mounting: Secure the motor to its base, ensuring the motor shaft aligns accurately with the transmission mechanism.

(2) Timing Belt Drive: Install timing pulleys on both the motor and driven shafts, then fit the timing belt.

(3) Ball Screw Drive: Complete the installation of the screw, nut seat, and coupling. Ensure the screw axis is parallel to the rails, and the coupling is properly aligned to minimize vibration and wear.

5.4 Laser Tube and Optical System Installation

The optical system is the core of the laser cutting machine. Its installation and alignment precision directly determine cutting quality and results.

Fixing and Protecting the CO2 Laser Tube

(1) Mounting: Use dedicated laser tube brackets to ensure even stress distribution, avoiding localized pressure. Pay attention to the tube’s output direction and water-cooling port orientation.

(2) Protection: Avoid impacts or excessive pressure on the laser tube during installation and operation. Extra care must be taken to insulate the high-voltage end (usually marked with red warnings).

Installing Mirror Mounts, Mirrors, and Focusing Lens Assembly

The optical system typically consists of three mirrors and one focusing lens.

(1) Mirror Mounts: Install the first, second, and third mirror mounts at specified positions on the frame.

(2) Mirrors: Carefully place the mirrors into the mounts, ensuring the optical surface faces the correct direction. Avoid touching the mirror surface with bare hands.

(3) Focusing Lens Module: Install the focusing lens (usually pre-mounted in its housing) onto the laser head.

5.5 Wiring Electronic Components

Proper wiring of electronic components is essential for the normal operation of the laser cutting machine. This step involves both high and low voltage; exercise caution.

• Core Connections: Per the manual, connect the main controller, motor drivers, laser power supply, and switching power supply.
• Switch/Button Installation: Wire limit switches, emergency stop buttons, and other necessary I/Os (like water-cooling protection).

Important Note: Always wire according to the diagram, operate with the power off, separate high and low voltage, ensure proper grounding, and use a multimeter to check connections before energizing.

5.6 Installation of Auxiliary Systems

Auxiliary systems are crucial for performance, safety, and longevity of the laser cutting machine.

Cooling System: Water Pump/Chiller Installation

CO2 laser tubes generate heat during operation and require water cooling.

• Water Pump/Chiller: Use silicone tubing to connect the pump/chiller outlet to the laser tube inlet, and return from the laser tube outlet back to the pump/chiller inlet, ensuring proper circulation.
• Water Flow Sensor (optional but recommended): Install the sensor and wire its signal to the controller to stop the laser if water flow is interrupted, protecting the tube.
• Coolant: Use purified or deionized water and replace it regularly.

Gas Assist System: Air Pump/Compressor Connection

The gas assist system blows compressed air onto the cutting point to remove slag, assist combustion (for some materials), cool the workpiece, and protect the focusing lens from contamination.

• Air Pump/Compressor: Connect the air outlet to the laser head nozzle via air tubing.
• Airflow Regulation: Use solenoid valves (controller-operated) and manual pressure regulators to control the flow.

Fume Extraction System: Fan/Duct Arrangement

Laser processing produces fumes and dust that are hazardous to both the environment and operator health.

• Exhaust Fan: Install a high-power exhaust fan at the back or bottom of the machine.
• Ducting: Connect the exhaust duct to the fan outlet and vent it outside or to a dedicated purification system. Ensure all connections are sealed for optimal performance.

5.7 Coordination of Components

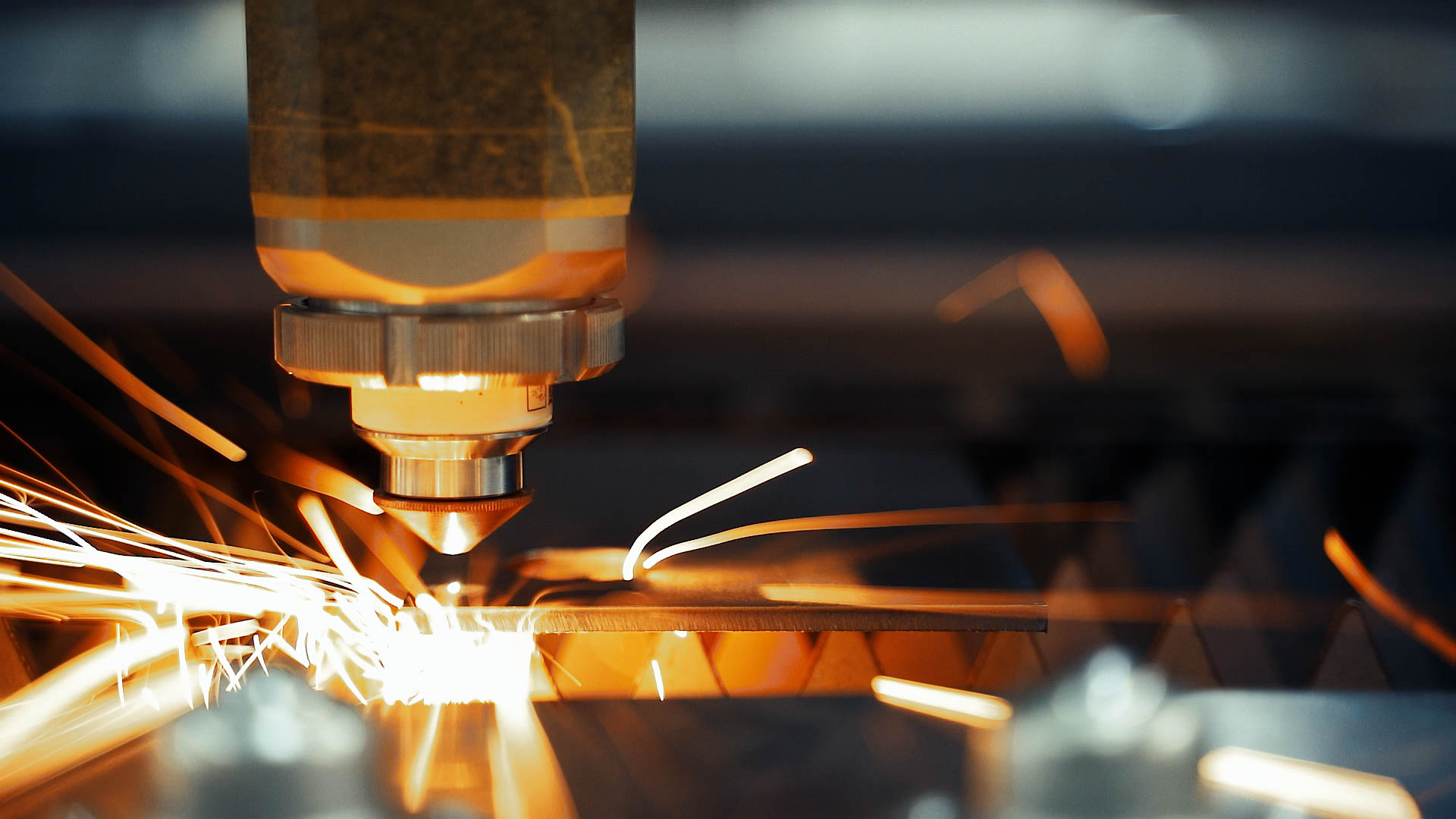

The laser cutting process is a highly automated and coordinated sequence:

1. The user loads or edits a cutting design via the interface (usually from CAD software, with G-code generated by CAM software).
2. The control system parses the G-code and commands the motion system drivers to move the cutting head along the predetermined path.
3. Simultaneously, the control system regulates the laser source to emit the specified power.
4. The laser beam is transmitted and focused by the optical system, striking the workpiece.
5. The control system also manages the assist gas system, spraying the appropriate gas at the cutting point to efficiently remove molten or vaporized material.
6. A height sensor (following system) on the cutting head continuously detects the distance between the nozzle and the sheet, feeding data back to the control system, which automatically adjusts the Z-axis to keep the focal point at the optimal position.
7. The machine bed provides a solid foundation for all processes, ensuring accuracy and reliability throughout cutting.

For a step-by-step installation demonstration, refer to the following video:

If you need more expert advice or assistance, you can contact us now for support.

Ⅵ. Commissioning, Calibration, and Testing

After completing all the installation steps for your laser cutting machine, you should proceed with commissioning, calibration, and testing to evaluate the results.

6.1 Preliminary Electrical Check

Electrical Connection and Insulation Inspection

Before powering up for the first time, check all electrical connections, focusing on:

• Connection Stability: Ensure all wires at terminals and connectors are secure, free from looseness or poor contact, and can withstand slight vibration or pulling.
• Connection Accuracy: Verify correct phase, neutral, and ground wiring against the electrical schematic to prevent short circuits or equipment damage.
• Insulation Integrity: Inspect cable insulation for damage, ensuring proper insulation between live and conductive parts to prevent leakage.
• Grounding Continuity: Confirm solid protective earth (PE) connections that meet safety standards, ensuring operator safety.

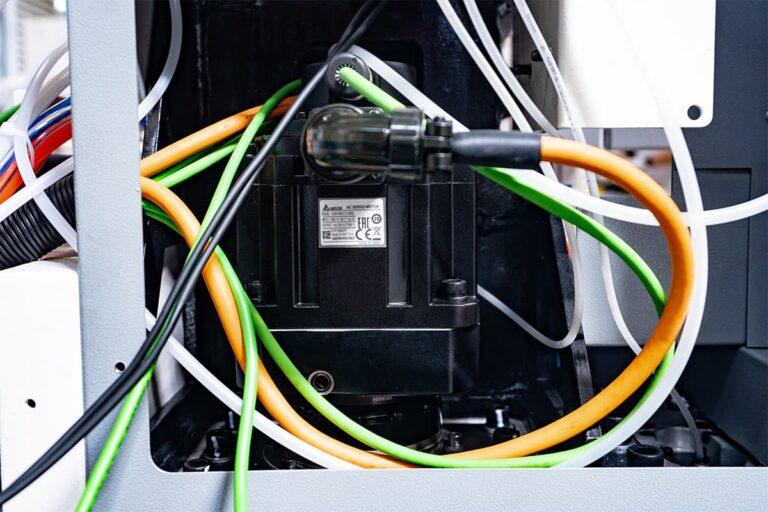

Stepwise Power-Up and System Response Test

To avoid potential electrical faults impacting the entire system, it is recommended to power up in stages:

• Control System First: Start the control system (e.g., CNC controller). Check indicator lights, abnormal noises, or odors to ensure normal operation.
• Low-Power Modules: After the control system is running stably, power up lower-power modules such as driver units and sensors. Verify basic functionality.
• High-Power Units: Lastly, energize high-power units like the laser power supply and spindle motor drivers. Monitor current and voltage readings, device temperature, abnormal sounds, or tripping of protection devices. If abnormalities are detected, disconnect power immediately.

6.2 Optical Path Alignment (Critical Step)

For laser processing equipment (such as laser cutting and engraving machines), optical path alignment is key to ensuring beam quality and processing results. The goal is to guide the laser beam precisely and stably from the laser source to the processing head, with a final vertical focus on the material surface.

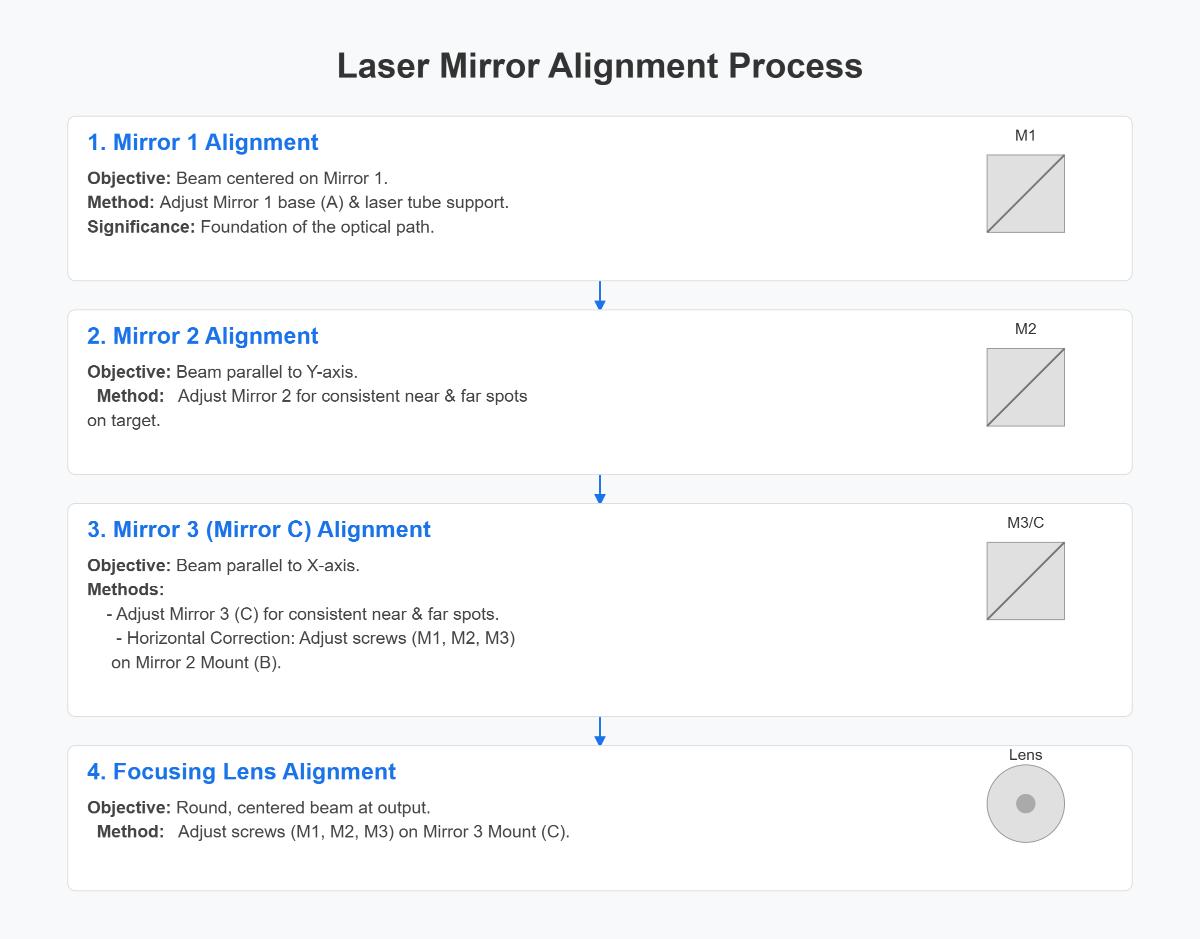

Mirror Alignment Principles and Steps

The laser beam typically passes through three mirrors before reaching the focusing lens. The aim of alignment is to ensure the beam always strikes the center of each mirror and maintains parallelism or a specific angle with the reference plane.

Basic Principle:

Adjusting the previous mirror changes the beam’s entry point on the next mirror; adjusting the current mirror alters the outgoing beam direction.

Alignment Steps (example: CO₂ laser):

First Mirror Adjustment

Stick masking paper to the first mirror’s alignment target hole, manually fire the laser at low power, and finely adjust the base of mirror A and the laser tube mount so the beam hits the center of the target. Avoid blocking the beam. This step forms the foundation for all subsequent alignment.

Second Mirror Adjustment

Move the second mirror to the far end and use a piece of cardboard to fire the laser from near to far, guiding the beam to the crosshair target. If the far-end beam is within the target, so will the near-end. Adjust until the spots at both ends coincide, meaning the crosshair is in the same position at both ends, indicating the beam is parallel to the Y-axis.

Third Mirror Adjustment

Move mirror C to the far end, guide the beam into the target, and fire at both near and far locations. Adjust the crosshair position so it matches at both locations, indicating the beam is parallel to the X-axis. If the beam deviates, simultaneously loosen or tighten screws M1, M2, and M3 on mount B until centered.

Focusing Lens Adjustment

Place masking paper at the output port, briefly fire the laser, and observe the resulting spot. Adjust screws M1, M2, M3 on mount C as needed until the spot is round and centered.

Optical path alignment is one of the most critical steps in commissioning. For more details, you can contact ADH Machine Tool’s staff.

6.3 Focus Adjustment

Focus adjustment aims to determine the optimal focal spot position after the laser passes through the focusing lens and ensure it accurately falls on the surface or a designated depth of the material, achieving maximum energy density and best processing results.

Methods for Determining the Optimal Focal Length

Multiple practical approaches exist to identify the best focal position (i.e., the distance from the nozzle to the material surface):

(1) Tilted Plate Method: Place a scrap material at an angle and perform a straight cut at low laser power and medium speed. The narrowest section of the cut indicates the optimal focus; measure the vertical distance from the nozzle to the material at this point.

(2) Multiple Test Cuts: On a flat material, incrementally adjust the Z-axis height (e.g., by 0.2mm or 0.5mm) and repeatedly make short straight cuts or dots. The Z height that produces the finest cut, strongest spark, or crispest sound is the optimal focus.

(3) Auto-Focus System: Many modern machines feature auto-focus systems that use sensors (such as capacitive or vision sensors) to detect the material height and automatically adjust the Z-axis, keeping the focal point at the preset position.

6.4 Initial Cutting Test

After all electrical, motion, and optical path alignments are complete, you can conduct the first cutting test to verify overall performance and process parameter settings.

Choose Test Materials and Initial Parameters

Test Material Selection: Use commonly known materials with clear properties – for CO2 lasers, acrylic or thin wood; for fiber lasers, thin carbon steel or stainless steel.

Initial Parameter Settings:

• Power: Start at 30%-50% of rated power to minimize potential damage.
• Speed: Use a moderate-to-slow cutting speed.
• Assist Gas: Choose appropriate gas based on material (oxygen for carbon steel, air or nitrogen for stainless steel or acrylic).
• Design: Start with simple shapes (such as squares, circles, or lines) to evaluate cut quality.

Observe Cutting Results and Fine-Tune Parameters

After the initial cut, carefully inspect the sample and adjust parameters as needed:

(1) Cut-Through: Ensure the piece is completely cut through. If not, increase laser power or reduce cutting speed.

(2) Kerf Quality: Check for uniform kerf width, smooth edges, and the presence of burrs or slag.

Slag: Significant slag at the bottom may indicate incorrect focus, improper speed, insufficient power, or incorrect gas pressure.

(3) Surface Roughness: A rough cut may result from mismatched speed and power, poor beam quality, or misaligned optics.

(4) Dimensional Accuracy: Measure the actual size of the cut shape and compare it to the design to verify motion system accuracy and pulse calibration.

(5) Corner Quality: Inspect for excessive burning or round corners at sharp angles, which typically relate to speed control, acceleration parameters, or laser switch delay.

Ⅶ. Precision Tuning: The Leap from 'Moving' to 'Exact'

Your machine can now follow instructions and emit a brilliant blue beam—but resist the urge to start engraving photos just yet. Right now, it’s only in the ‘can move’ stage, and any uncalibrated cuts may turn circles into ovals, ruin joint fits, or leave edges burnt. In this chapter, we’ll use an industry-grade calibration process to transform your DIY laser into a precision instrument that measures in millimeters.

7.1 Laser Focus Masterclass: Finding the Beam’s “Waist”

Most budget laser modules come with a fixed-focus spacer (often an acrylic piece of set thickness) that offers only a rough estimate. Lens assembly tolerances vary with every laser diode—you’ll need to physically test and find your machine’s unique optimal focal point.

Step One: The Ramp Test — This is the most scientific way to locate the beam waist and visualize the laser’s convergence.

1. Create the Ramp: Take a scrap wooden board about 200mm long, and raise one end (e.g., by placing a 20mm-high block under it) to form a gentle slope.
2. Draw the Test Line: In LightBurn, draw a straight line matching the board’s length. Use low power (about 10–15%) and moderate speed (1000 mm/min)—enough to leave a mark without cutting through.
3. Run the Scan: Position the laser head over the ramp and run the line along the X-axis (following the slope).
4. Analyze the Result: On the board, you’ll see a line with a ‘thick–thin–thick’ hourglass shape. The portion that is thinnest, deepest, and with the sharpest edges is your true focal point.
5. Measure and Lock In: Without changing height, move the laser over the thinnest point and measure the vertical distance from the nozzle tip to the board’s surface. Record this number (e.g., 5.2mm)—it’s your machine’s true golden focal length.

Step Two: Make a One-Touch Focusing Jig — Stop measuring with calipers every time. Using the focal distance you found, cut a small wooden piece or 3D print a block exactly that height. In the future, just place the jig on the workpiece, lower the laser until it touches the jig, and lock it—reducing focusing time from 30 seconds to 2 seconds.

7.2 Eliminating Cutting Errors (Kerf & Backlash)

If puzzle pieces don’t fit or perfect circles turn into rugby balls, the culprit is often kerf (beam width compensation) or backlash (mechanical play).

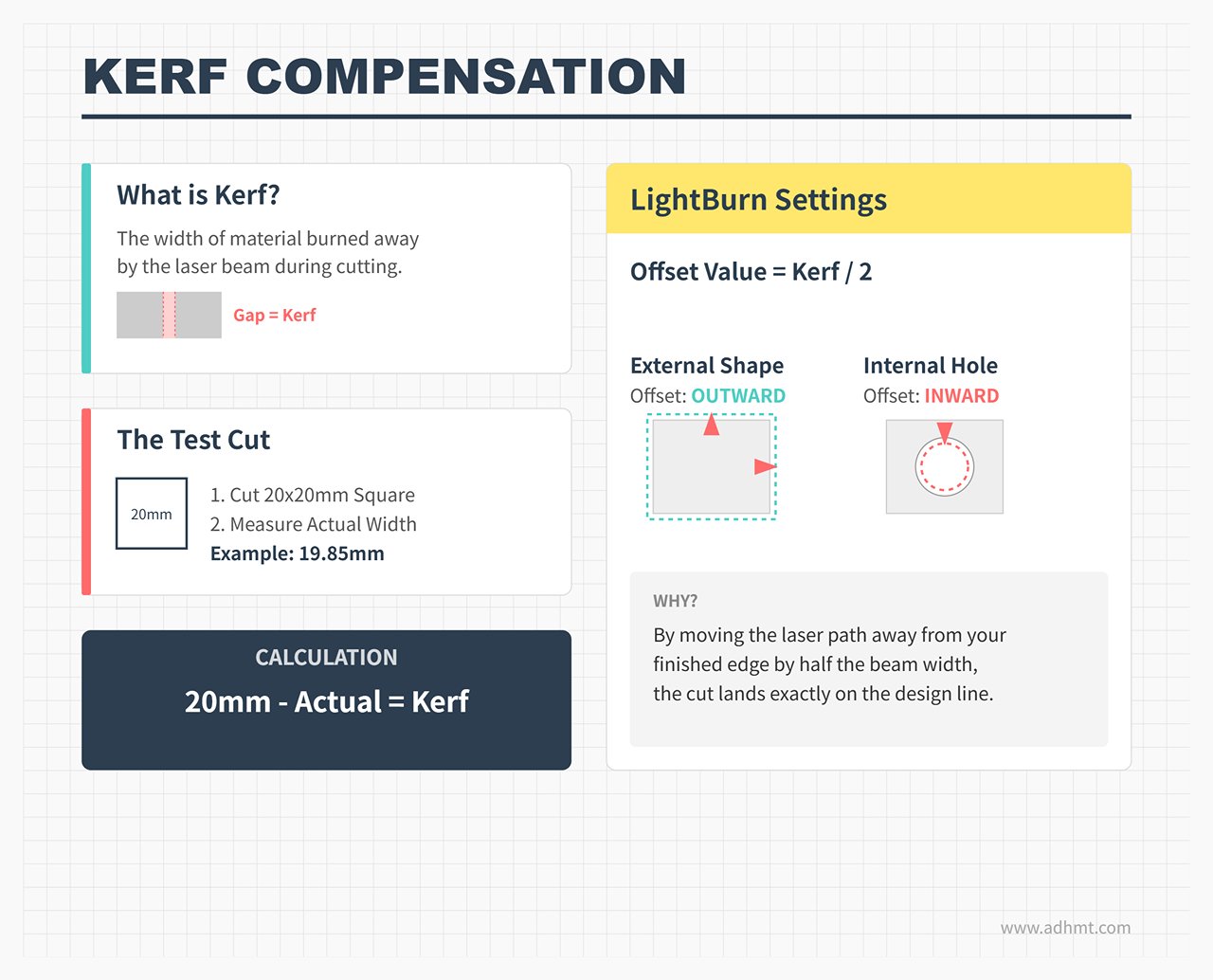

Kerf Compensation: Fixing Misfit Joints — The laser isn’t a zero-width scalpel; it’s a ‘fire saw’ with a beam width. The burned-away material width is called kerf, typically between 0.08–0.2mm.

• Measurement Method: Cut a 20x20mm square. Measure the actual piece’s width with a digital caliper (say, 19.85mm).
• Formula: Kerf=20-19.85=0.15mm
• Usage: In LightBurn’s layer settings, use “Kerf Offset.” For external outlines, set an outward offset equal to half the kerf (0.075mm). For internal holes, set an inward offset. This fine-tuning is key to achieving that satisfying precision-fit feel in DIY builds.

Backlash Compensation: Fixing Incomplete Closures — If a circle’s start and end points don’t meet perfectly, or it appears slightly squashed, the belts or pulleys may have play.

• Diagnosis: Cut a 20mm diameter circle. If the X-axis diameter is shorter than the Y-axis, or the circle becomes an oval, the belts are loose or pulley set screws have loosened.
• Dual Approach: First, check belt tension (see ‘string pluck’ method earlier). If the mechanics are fine, enable Backlash Compensation in LightBurn’s “Machine Settings,” typically with a value of 0.1–0.2mm to correct slight lag.

7.3 Power/Speed Matrix Test: Building a Material Fingerprint Library

One of the most common beginner mistakes is asking online, “What settings should I use to cut 3mm basswood?” Machines differ, and so does the wood’s moisture content—copying others’ parameters often ends in incomplete cuts or severe charring. You need to build your own parameter matrix.

Create a Material Test Card: LightBurn comes with a powerhouse tool called the “Material Test Generator” (found under the Laser Tools menu).

1. Generate the Matrix: Set up a 10x10 grid. The X-axis represents power (e.g., from 10% to 100%), while the Y-axis represents speed (e.g., from 200 mm/min to 1200 mm/min).
2. Run Practical Tests: Use this file on the materials you typically work with, such as 3 mm basswood. You’ll produce a card covered in squares of varying shades and depths.
3. Identify the “Sweet Spot”:

• For engraving: Look for the square with the deepest color but without any browned or scorched edges.
• For cutting: Flip the board over and examine the back. Find the squares that cut clean through, have the narrowest kerf, and show minimal smoke marks on the reverse side.

Expert insight: Don’t chase 100% power blindly. Diode lasers degrade much faster at full output. If 80% power combined with a speed of 400 mm/min achieves a clean cut, there’s no need to push to 100% power at 600 mm/min. Discovering the “lowest effective power” is the key to extending your laser’s lifespan.

Once you’ve fine-tuned this chapter’s settings, your machine stops being a jumble of parts and becomes a productivity-grade CNC tool. Write your tested material parameters on a sticker and place it prominently on the machine’s exterior—this becomes your fastest, most reliable “production manual.”

Ⅷ. Advanced Applications and Monetization: Turning Your Machine into a Cash Generator

At this point, your machine has passed the precision test, but that only marks the completion of the “tool-making” stage. True maker spirit lies not just in building things but in creating value. This chapter will show you three essential hardware upgrades that transform a DIY build from a hobbyist's toy into a commercially viable “production powerhouse,” and outline a business pathway from prototype to small-batch monetization.

8.1 Three Must-Have Performance Upgrade Kits

If previous steps were about making your machine “operational,” these three upgrades are what enable it to “generate income.”

1. Air Assist: The Cutting Power Multiplier

This is the single most cost-effective upgrade in terms of ROI. Laser cutting is essentially a controlled burn, and combustion requires oxygen while producing waste gas.

• Principle and Choices: Air assist uses a nozzle to blow high-pressure air directly at the cutting point. For engraving, a basic aquarium pump (around $20) provides enough airflow to clear smoke and protect the lens; for cutting, opt for a laser-specific air pump or a quiet compressor delivering 5–10 psi pressure.
• Core Benefits: A strong air stream instantly clears carbonized debris, allowing the beam to penetrate deeper into the material. Tests show that with air assist, cutting depth increases by 30–50% at the same power, and edges remain clean and wood-toned, eliminating unsightly charring.

2. Honeycomb Bed: Preventing Backside Burns

Placing material directly on a solid metal plate or tabletop means the laser beam can reflect back after piercing through, leaving hard-to-remove “lightning marks” or smoke stains.

• Structural Advantage: More than 95% of a honeycomb bed’s surface is open space, so after penetrating the material, the beam hits a waste tray below instead of reflecting, minimizing contact and burn marks.
• Pro Tip: Use magnetic pins to raise the material 2–3 mm above the honeycomb bed. This creates optimal airflow above and below the piece, eliminating “backfire” entirely and producing equally pristine front and back surfaces—ready for sale without further finishing.

3. Rotary Roller Attachment: Unlocking the Cylindrical Market

Flat-surface engraving is highly competitive, but cylindrical custom work—like insulated tumblers, wine bottles, or baseball bats—remains a high-margin niche.

• Low-Cost DIY Option: No need to buy an expensive unit. Using leftover aluminum profiles and 3D-printed parts with a NEMA 17 motor and two rubber rollers, you can build one for about $30.
• Wiring and Setup: Connect it to the Y-axis motor port (or a dedicated A-axis port). In LightBurn, enable “Rotary Mode,” input the roller diameter (e.g., 20 mm) and the object diameter, and the software automatically calculates rotation steps for perfect seam-free engraving on curved surfaces.

8.2 Transitioning from DIY to Micro-Business

With professional-grade equipment, you’ve moved from being a consumer to operating as a micro-manufacturer. Here are three proven ways to monetize:

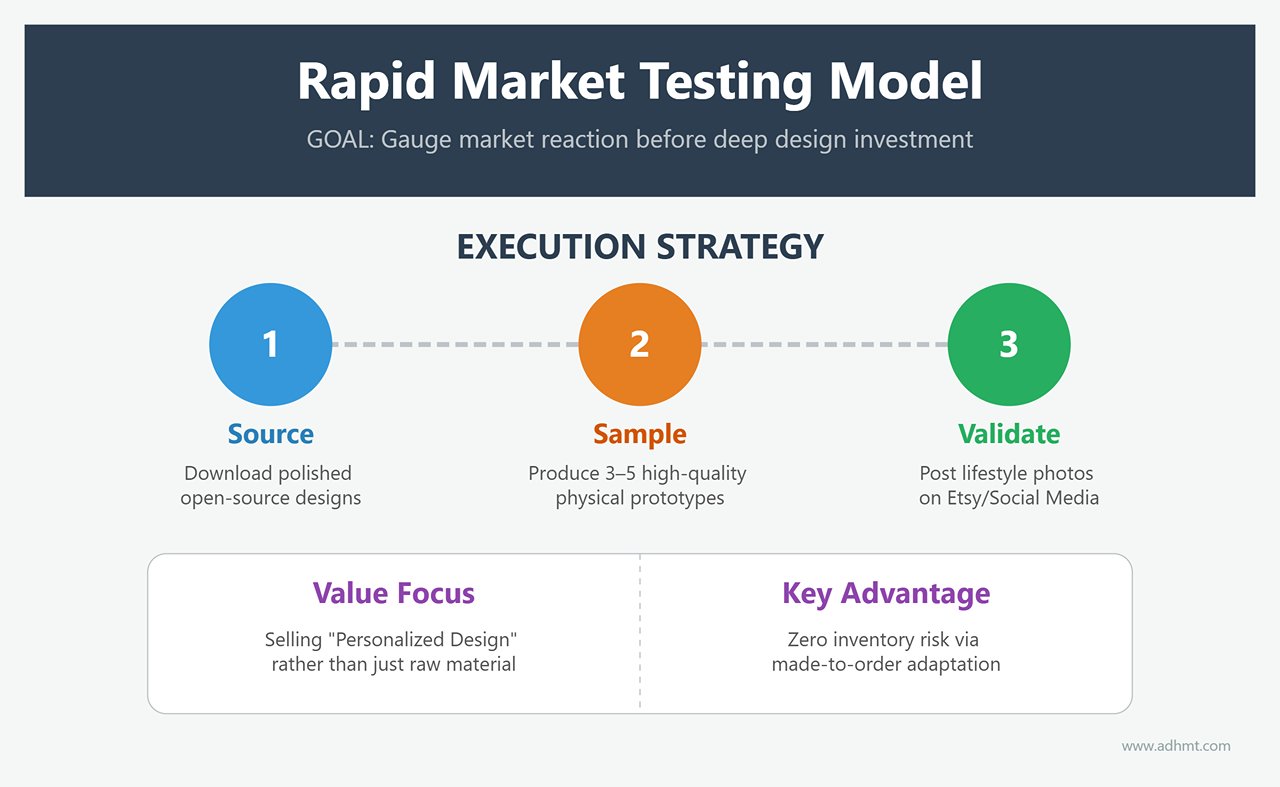

1. Rapid Prototyping for Market Testing (Etsy/Xiaohongshu Model)

Don’t design in isolation at the start. Leverage your machine’s rapid, low-cost capabilities to gauge market reactions.

• Strategy: Download polished, open-source designs (e.g., layered mandalas, holiday decorations, wedding signage) and produce 3–5 high-quality samples. Shoot professional lifestyle photos and post them on social media or Etsy.
• Value Proposition: You’re selling “personalized design,” not just wood. Once a particular style attracts likes or inquiries, use your DIY machine’s adaptability to tweak designs (adjust sizes, add names) for made-to-order sales with no inventory risk.

2. Grid Layout and Jig Production for Small-Batch B2B

When fulfilling orders like 50 coasters for a café or 100 keychains for a business, efficiency directly converts to profit.

• Grid Layout: Use LightBurn’s “Grid Array” function to arrange items across an entire sheet at once, factoring in kerf compensation.
• Jig Positioning: The secret weapon for batch work—cut a waste board into a “negative mold” base and fix it to the honeycomb bed. After that, simply pop your blanks into the slots. No refocusing or realignment required, enabling “blind cutting” that slashes production time by 60% while keeping every piece perfectly aligned.

3. Local Technical Services

Capitalize on your DIY expertise by offering paid knowledge and support.

• Service Scope: Provide assembly guidance or parameter tuning to local schools, makerspaces, or individuals looking to get started.
• Pain Point Solution: Many buyers hesitate to assemble their machines or struggle to cut materials effectively. You’re offering not only fixes but also the assurance of safe, reliable operation—often earning a higher hourly rate than selling products outright.

8.3 Troubleshooting and Maintenance Guide

In a commercial setting, downtime equals lost revenue. Mastering a diagnostic reference transforms you from a reactive repairer into a proactive system manager.

Quick Reference for Common Issues

The Consumables Longevity Code

• Extended Life for Diode Lasers: Avoid running continuously at 100% power. Diode lifespan is non-linear with temperature. Set maximum output to 85–90%—even if cutting speed is about 10% slower, the laser module’s lifespan can jump from roughly 2,000 hours to over 10,000 hours.
• Lens Cleaning Discipline: Establish a strict weekly inspection routine. Use anhydrous ethanol and professional lens tissue to gently wipe the lens. Never use paper towels or cotton swabs, as scratching the coating will scatter the beam and permanently ruin the module.

You now own a precision-tuned laser cutter, equipped with a full suite of safety and performance upgrades, along with a crystal-clear plan for monetization. This is no longer a pile of cold metal parts—it’s the tangible extension of your creativity, and the starting point for your side income.

Ⅸ. Conclusion

Learning to build a laser cutting machine helps learners better understand the technology, gain insight into mechanical and optical systems, and reduce investment costs. Should questions arise during assembly, contact us for expert guidance. You can also explore more advanced industrial models like our Single Table Fiber Laser Cutting Machine or Double Table Fiber Laser Cutting Machine, designed for both precision craftsmanship and high-volume production.
