A 10-gauge sheet of cold-rolled steel is harmless—right up until the ram makes contact. In that instant, the press brake isn’t “making a part”; it’s seeking the path of least resistance to release thirty tons of force. If your fingers happen to be in that path, the machine won’t pause—and the light curtains won’t offer apologies.

In this shop, speed is a vanity metric favored by the soon-to-be-injured. A rookie sees a high-speed ram and thinks about cycle times; a veteran sees a loaded weapon with a hair trigger. Real productivity isn’t measured by how fast the ram travels, but by how many cycles it completes without drawing blood.

Whether you’re operating a conventional hydraulic brake or a modern CNC Press Brake, the physics don’t change. Force still follows the path of least resistance. Steel still displaces with violence. And mistakes are still paid for in flesh.

The 100-Ton Guillotine Myth: Why Your Machine Is a Risk-Management System—Not Just a Bender

The Stored Energy Trap: What Happens When 30 Tons Collide with Human Error

Each year in the United States, approximately 368 workers lose a limb to a press brake. OSHA data indicates that 88% of these incidents are classified as “serious”—meaning the machine didn’t merely graze a finger; it took it. These are not abstract statistics. They are the predictable outcome of treating a high-pressure hydraulic system like a household appliance. When you step up to the die, you’re not just operating a tool—you’re standing inside a kinetic chain engineered to deform structural steel. If that chain is disrupted by a misplaced hand or a stray piece of scrap, the energy doesn’t vanish; it redirects to the system’s weakest point.

Most operators assume safety is built into the machine. In reality, safety is a condition created by setup and material control. As the ram descends, the potential energy stored in hydraulic fluid converts into immense mechanical force concentrated over a small surface area. If the workpiece isn’t perfectly seated—or if you’ve bypassed a guard to “save time”—you’ve effectively disengaged the safety on a loaded firearm. The machine cannot distinguish between a 90-degree V-die and your radius bone. It only recognizes one directive: equalize the pressure.

If the machine is constantly poised to fail, why do we keep giving it the chance?

Check or Wreck: Treat every stroke like a bomb-disposal operation—if the blast zone isn’t clear, don’t pull the trigger.

Why the Foot Pedal Is the Most Dangerous Tool in the Shop

The foot pedal is the direct link between your judgment and thirty tons of force—yet it’s the most misused control on the shop floor. New operators often develop a “lazy foot,” resting their weight on the pedal while repositioning the workpiece by hand. That’s the mechanical equivalent of cleaning a pistol with your finger on the trigger. A sneeze, a slip, or a brief loss of balance can initiate a full ram cycle. Because the pedal functions as an electrical or hydraulic switch, it offers none of the tactile feedback you’d get from a hand tool; by the time you sense something is wrong, the metal is already in motion.

The real hazard isn’t just an accidental press—it’s the steady rhythm of complacency. When you’re producing a run of five hundred brackets, your brain shifts into autopilot, synchronizing foot pressure with hand placement. That so-called “flow state” is where amputations occur. Your hands move to clear the part, but your foot—conditioned by hours of repetition—activates the ram before your fingers are safely away. You cannot outpace hydraulics. Once the valve opens and the ram begins its descent, there is no “undo” command fast enough to stop a falling die.

If the pedal is a trigger, what happens when the target isn’t the metal?

Check or Wreck: If your hands are in the die, your foot stays flat on the floor—not on the pedal.

The "Metal Folder" Fallacy: Understanding the Physics of High-Pressure Bending

Data from IndMacDig indicates that an alarming 83% of press brake injuries occur outside traditionally guarded zones. The root cause is a flawed mental model: operators treat the machine like a simple “folder” that moves the ram straight down. In reality, a press brake is a displacement engine. When the punch contacts the material, the sheet doesn’t passively comply—it snaps upward. If you’re supporting a large sheet of 12-gauge steel and the ram strikes at full speed, the trailing edge transforms into a high-velocity lever. That moving mass creates a secondary crush zone—one that light curtains frequently fail to detect.

This effect becomes exponentially more dangerous when forming long or heavy plates on a Large Press Brake, where the trailing edge can weigh hundreds of pounds. The physics of bending are unforgiving: the material has to move, and it will move with force equal to that of the ram. If your hand is resting on the sheet’s edge—or worse, if you’re trapped between the rising workpiece and the machine frame during its upward swing—you won’t be injured by the tool. You’ll be crushed by the metal itself. That’s why “slowing down” isn’t a courtesy; it’s a technical necessity. By controlling both approach speed and bending speed, you regulate the material’s kinetic energy and prevent it from turning into a secondary projectile.

If the material itself poses the danger, how can we anticipate where it’s going to move?

Check or Wreck: Keep your eyes on the tail, not just the punch—the sheet in your hands is the part most likely to strike back.

The Invisible Cage: Mastering Safety Systems Before the First Stroke

Each year, U.S. fabrication shops report more than 360 press brake amputations, and 88% are classified as severe. These incidents don’t occur on unguarded, rusted antiques from the 1950s. They happen on modern machines equipped with laser guards—when an operator decides the safety system is getting in the way.

Light Curtains vs. Two-Hand Controls: Why They Are Your Primary Interface

A standard light curtain system may reduce stroke output by 5%. On a $50,000 machine, accountants may frame that as a $2,500 productivity hit. Under pressure to meet quotas, an operator reaches past the laser field to steady a part—and that 5% “gain” suddenly costs three fingers. An inexperienced operator sees a high-speed ram and thinks in terms of cycle time. A seasoned professional sees a loaded weapon with a hair trigger. Light curtains and two-hand controls aren’t optional add-ons; they are the critical interface between your vulnerable body and thirty tons of hydraulic force.

If you want to understand exactly how that force is generated, controlled, and stopped within a modern CNC system, this technical breakdown—How Does a Press Brake Work—offers useful context. Manufacturers such as ADH Machine Tool, with 100% CNC integration across their product lines, design these control layers into the core of the machine, not as afterthoughts, which makes understanding the full operating cycle essential before evaluating any safety interface.

Two-hand controls physically keep your hands away from the pinch point. They require you to step back and allow the machine to complete the stroke. But when bending a wide sheet of 12-gauge steel that snaps upward, two-hand controls can introduce new risks. The material must be supported to prevent kinking—or worse, pinning you against the frame. That’s where light curtains become essential, forming an invisible grid that instantly breaks the circuit if a wrist crosses the boundary.

The issue isn’t the technology. The issue is the operator’s unwillingness to operate within its limits.

You are not faster than hydraulics. If you try to outsmart the light curtain to snatch a falling part, the machine will win every time. The sensors react in milliseconds; human reflexes lag behind in tenths of a second. These systems are engineered to prevent amputations—so why do operators so often undermine the very safeguards designed to protect them?

Check or Wreck: Treat every stroke like you’re defusing a bomb—if the blast zone isn’t clear, don’t pull the trigger.

The Emergency Stop Test: A 30-Second Routine That Saves Careers

A failing brake valve doesn’t announce itself with a bang. It slips—barely a fraction of a millimeter at a time. Most operators clock in, grab the print, and step on the pedal. They assume the big red button works today because it worked yesterday. That assumption is how people end up in the back of an ambulance. If the E-stop circuit is compromised by a fused relay, the button on the console is nothing more than a piece of plastic.

The E-stop test takes thirty seconds. Bring the ram down in jog mode, hit the E-stop, and watch the dial indicator. Does it stop dead—or does it drift?

A drifting ram is a guillotine waiting for the right surge of power. Drift signals leaking hydraulic valves, blown seals, or a compromised mechanical brake. You cannot offset that risk with quicker hands. Once the stopping system deteriorates, the machine is no longer fully under your control—it’s running on borrowed time.

If the electronics respond but the mechanical stopping force behind them has weakened, what’s really protecting you?

The rule is simple: if the ram drifts even one thousandth of an inch after you press the red button, lock out the machine, pull the key, and step away.

Muting and Overrides: When a Necessary Adjustment Turns Into a Deadly Shortcut

When forming a complex box flange, the workpiece often has to break the plane of the light curtain before the punch even contacts the metal. The machine stops. To complete the bend, you must engage the "mute" function—temporarily disabling the safety sensors for that specific segment of the stroke. Muting is a legitimate engineering solution designed to accommodate complex geometries.

But in a high-pressure production environment, muting can quickly become a deadly shortcut.

Operators quickly figure out that if they leave muting engaged for the entire shift, they no longer have to choreograph every hand movement with precision. They swap an invisible safety cage for a boost in parts per hour. That’s when the math behind the press brake turns unforgiving. Override the guarding to hit a production target, and you’ve effectively taken the safety off a loaded gun. The machine doesn’t care that you’re chasing quota. It only knows the pedal is pressed and the hydraulic pressure has to go somewhere.

Production pressure creates the temptation—but the operator is the one who pulls the trigger. Real expertise means having the discipline to reset the safeguarding for every single setup, even when the foreman is glancing at his watch. When the machine is functionally blind, who owns the risk at the pinch point?

The instant you disable the electronic cage, the only safeguard left is the uncompromising math of the tooling itself.

Tooling Math: Why “Close Enough” Is an Accident Waiting to Launch

The V-Die Opening Rule: Why 8× Material Thickness Is a Safety Threshold, Not a Suggestion

A rookie walks up to a stack of 10-gauge mild steel and grabs a 12 mm V-die because it’s already mounted on the bed. He thinks he’s being efficient. In reality, he’s just turned the press brake into a pressure vessel with no relief valve. The standard rule—an opening equal to 8× the material thickness—exists for a reason: it balances the force required to form the metal against the structural limits of the die shoulders. Drop to a 6× opening to chase a tighter radius, and you’re not simply shaping a part—you’re exponentially increasing the tonnage needed to move that steel.

Physics is a ruthless accountant; it always settles the books. A die that’s too narrow forces the punch to deliver more force than the tool steel was ever designed to withstand, leading to "coining"—where you’re no longer bending the metal but crushing it into submission. The result is internal stress that can split a die straight down the center, launching hardened steel fragments across the shop floor at handgun-round velocity. Double the material thickness, and you don’t merely double the required force—you multiply it fourfold.

Stainless steel demands even greater caution, typically requiring a 10x or even 12x die opening because its higher tensile strength resists deformation far more aggressively than mild steel. Aluminum, being softer, may tolerate a 6x opening, but even then you run the risk of galling the die and destroying the surface finish. These calculations aren’t arbitrary rules designed to slow you down—they exist to prevent the machine from literally pulling itself apart under load.

So what happens when you’ve chosen the perfect die, but the punch tip isn’t rated to handle the pressure?

Punch Tip Geometry and Tonnage: Calculating the Point of Machine Failure

Think of the punch tip as the striking face of a sledgehammer. You might have all the strength in the world, but if you try to drive a finishing nail with a ten-pound maul, something will give. In press brake operations, that “something” is usually the punch tip—or worse, the ram itself. We treat “tonnage” like it’s just a number on a display, but in reality, it’s concentrated energy searching for the weakest link.

If that weak link isn’t the workpiece, the force will redirect itself into the tool steel.

A sharp punch tip produces a clean, tight inside radius—but it also behaves like a wedge. Under extreme tonnage, a narrow tip can pierce the material outright or, worse, begin to deform. This “punch tip mushrooming” alters the tool’s geometry in real time. The moment that happens, the calculations you relied on minutes earlier are no longer valid. You’re operating blind—with a 100-ton mass suspended over your hands.

And even if the numbers on the control screen say you’re within limits, how can you be sure the tooling is actually positioned and secured correctly?

Seating the Tools: How to Verify Clamping Before the Ram Moves

You can invest in the most precise, CNC-ground tooling available, but if it isn’t properly seated in the holders, it’s nothing more than high-priced scrap waiting to happen. I’ve watched operators clamp a punch in place and walk away, unaware that it was hung up on a burr or a flake of mill scale. The instant the ram descends, that punch will shift. Even the slightest movement destroys alignment with the V-die—and the result is a gunshot-like crack as the punch slams into the die shoulder.

The “seating stroke” is the most overlooked step in any setup. Bring the ram down under low pressure, allow the punch to settle naturally into the die, and only then lock down the clamps. This process ensures the tool is perfectly vertical and precisely centered. Skip it, and you’re gambling that clamp friction can overpower the lateral force generated by a 30-ton bend.

A misaligned punch doesn’t just scrap a part—it side-loads the ram. Side-loading is the quiet killer of press brakes, steadily wearing down gibs and seals until the machine loses its accuracy altogether. You might save five minutes by ignoring the seating check, but you’ll lose five weeks waiting for a technician to rebuild your cylinders.

If you’re evaluating new equipment or comparing clamping systems, review detailed technical specifications and safety configurations in the manufacturer’s brochures before making a decision.

Check or Wreck: If you haven’t verified tool seating with a low-pressure cycle, you’re not operating the machine—you’re gambling with the most dangerous piece of equipment in the shop.

The Pre-Bend Ritual: A Non-Negotiable Sequence for a Zero-Injury Setup

Backgauge Calibration: Why You Never Rely on the Machine’s Memory Alone

A backgauge finger that’s been clipped by a forklift or crashed by an inexperienced operator can display “zero” on the screen while sitting an eighth of an inch out of square. The CNC controller is obedient—but blind. It assumes the physical world matches its digital coordinates exactly. If someone previously drove a heavy plate into the gauge, the servo motor may still hit its programmed position, yet the mechanical stop could now be bent, twisted, or loose.

You won’t catch that by staring at the monitor. You catch it by pulling out a calibrated 1-2-3 block or precision-ground spacer and physically checking the gap between the punch and the gauge. If the display reads 4.000 inches but your block slides in loosely—or won’t fit at all—the machine is feeding you bad information. Trust that misinformation, and you’ll end up with out-of-tolerance parts—or worse, a punch clipping the edge of a gauge finger and launching hardened steel toward your face.

Calibration is your one opportunity to audit the machine’s accuracy before 100 tons of force enter the equation. An out-of-square gauge doesn’t just distort the flange; it creates uneven resistance during the bend, causing the material to pivot unpredictably. When metal moves in ways you didn’t anticipate, your fingers are the first thing at risk.

Once you’ve physically verified the stops, how do you make sure the ram’s travel won’t turn your setup into flying shrapnel?

The Dry Run Protocol: What to Watch and Listen for Before Loading Material

The sound of a servo motor straining against a hidden obstruction is your first warning that things are about to get very expensive. A dry run—cycling the machine without material—isn’t wasted time; it’s a controlled simulation where you’re the only one with the power to abort. You’re checking the “pinch point” as the punch enters the die, but you’re also monitoring the backgauge to confirm it retracts or shifts as programmed during the stroke—without creating a trap for your hand.

Most operators fixate on the tooling. Veterans watch the “shadow zone” behind the ram. Recent data indicates that a substantial share of backgauge-related injuries occur because the operator was focused on the front of the machine while the automatic gauge advanced to its next position, pinning a hand against the bed. During a dry run, keep your hands on the dual-palm controls or foot pedal, ready to stop the motion instantly if any clearance looks questionable.

If the ram shudders or the light curtain flickers, don’t try to power through it. Those are warning signals that your setup geometry is conflicting with the safety system or pushing the frame’s mechanical limits. What you’re listening for is the smooth silence of a clean stroke. Any metallic “clack” or “grind” during a dry run signals a collision—one that would become a full-blown catastrophe under load.

Check or Wreck: If you haven’t observed the entire backgauge and ram cycle without material in place, you’re gambling on a collision you can’t afford.

Even after a flawless dry run, how will the material behave once real pressure comes into play?

The Three-Piece Scrap Validation: Catching Setup Errors Before Production Begins

Industry data reveals a sobering fact: 83% of press brake injuries occur in areas beyond the reach of standard safety guards—specifically where sheet metal “whips” upward toward the ram during a bend. You can install the best light curtains available, but they won’t stop a four-foot sheet of 10-gauge steel from swinging up like a guillotine blade and pinning your hand against the machine frame. That’s why you never begin production with a “live” part. You start with three scrap pieces to map the danger zone.

The first scrap piece confirms the angle; the second verifies backgauge consistency; the third shows you exactly where the "whip" will travel. As the metal bends, it creates a moving hazard that simply doesn’t exist when the machine is idle. Using scrap allows you to observe the material’s path safely and adjust your hand placement or machine speed so you’re never standing in the line of fire when production begins.

Validation is your final opportunity to catch a potential "coining" event—when tonnage spikes due to unexpected variations in material thickness. If the scrap piece groans or the machine frame visibly flexes, stop immediately. You’re watching for both the "pinch" and the "swing," making sure that as the part forms, it doesn’t introduce a new, unguarded hazard that your sensors are incapable of detecting.

Check or Wreck: Treat every stroke like you’re defusing a bomb—if you haven’t cleared the blast zone with a scrap test, don’t pull the trigger.

The Physics of the Stroke: Controlling the "Whip" and Material Memory

Supporting the Sheet: Surviving the Upward Arc of the Bend

A 10-gauge steel sheet doesn’t simply bend—it becomes a lever capable of breaking a forearm before a light curtain even registers an interruption. When the punch seats into the die, the material on both sides must displace, swinging upward in an accelerating arc as the bend tightens. You are not faster than the hydraulics. If you’re gripping the edge of a four-foot sheet, that edge is moving far faster than the ram itself, creating a "whip" effect that catches inexperienced operators off guard. They assume they can "ride" the metal upward with their hands, but the moment the ram reaches full tonnage, the sheet turns into a rigid, high-speed blade.

You survive by positioning yourself outside the arc of travel, using your body as a brace—not a passenger. For large parts, use sheet supports—mechanical arms that track the bend—because your muscles cannot respond to millisecond spikes in kinetic energy. Standing directly in front of a wide sheet is an open invitation to be struck in the chest by several hundred pounds of swinging carbon steel. Respect the pivot point: the V-die is the fulcrum, and the ram supplies the force that will move anything in its path—including you.

The hazard isn’t limited to the upward arc—it’s the sudden "drop" that follows if the sheet slips or the bend gives way. If you haven’t planned for the weight shift as the material clears the die, the part can lurch forward and crush your fingers against the lower apron. Treat every sheet like a live electrical line: maintain controlled contact, but never curl your hands around an edge where the "whip" effect can pin you against the machine frame.

Check or Wreck: If your hands are on top of the sheet during the arc, you’re nothing more than a speed bump in its path.

Grain Direction and Springback: Why the CNC Can’t See the Metal’s "Memory"

The CNC controller is brilliant at calculations but blind to metallurgy. It determines bend depth from nominal thickness values, yet it has no awareness of whether the sheet was rolled north–south or east–west at the mill. Metal carries a "memory" in its grain structure—a molecular bias that dictates how it prefers to stretch and where it resists. Bend across the grain and the material becomes stiffer, increasing the risk of cracking; bend with the grain and it may over-bend because internal resistance is lower.

Emerging research indicates that materials subjected to sustained pressure can gradually reorganize their internal structure, effectively "remembering" the stresses they experienced—even while sitting idle in a cold warehouse stack. As a result, two sheets pulled from the same pallet can behave like entirely different animals. The CNC reads 0.125-inch steel. You notice the surface scale, the subtle bow in the plate, and the direction of the rolling marks. Ignore those physical cues, and springback—the metal’s tendency to rebound toward its original shape once pressure is released—becomes an unpredictable variable you’ll never fully control.

Springback is the material’s final act of resistance. You can program a precise 90-degree bend, but the steel’s internal "memory" may pull it back to 92 degrees the instant the punch retracts. An experienced operator understands that the stressed particles within the metal are pushing back against deformation, and no software can perfectly anticipate that response without a human verifying the first piece. You’re checking for the true "set" of the bend—confirming that the molecular structure has permanently yielded to the new geometry rather than merely being forced into place.

Check or Wreck: Rely on the computer’s angle prediction without accounting for grain direction, and you’ll spend the entire shift chasing a phantom in the steel.

Feathering the Pedal: Retaining Manual Control in an Automated Cycle

Modern press brakes feature high-speed “rapid” descent modes that can dramatically increase throughput—but speed is precision’s adversary and accidents’ accomplice. A rookie sees a fast-moving ram and thinks in terms of shorter cycle times. A veteran sees a loaded weapon with a hair trigger. You preserve manual control by “feathering” the foot pedal—modulating pressure to regulate the ram’s speed as it nears the pinch point. That brief approach window is your only opportunity to confirm the material is properly seated against the backgauges before committing full tonnage.

Automation tends to fail at the most critical juncture: the transition from free air to material contact. Many adaptive systems don’t begin capturing meaningful data until after the punch makes contact and force spikes—leaving the entire buildup phase in a sensor blind spot. By feathering the pedal, you’re conducting a live audit of the setup. If you feel a tremor through the floor or notice the sheet shift even a fraction of a millimeter at first touch, you ease off immediately. That split-second hesitation can mean the difference between a clean bend and a shattered die.

Even the most advanced AI models struggle to compensate for the subtle vibration of a part that isn’t perfectly flat. Your foot on the pedal is the most reliable emergency stop available—more dependable than any light curtain—because it’s linked to a brain capable of sensing “something’s wrong” before a sensor ever throws a fault code. You are the governor on the engine, the final safeguard preventing a flawless, high-speed collision with a misaligned part.

Check or Wreck: If you let the machine dictate the stroke, you’re nothing more than a passenger on a wrecking ball.

The Professional Pivot: Cultivating the Judgment to Stop

Identifying the “Wrong” Sound: Knowing When to Abort the Stroke

A press brake running smoothly carries a steady, low hydraulic hum. A machine in distress, however, warns you before it fails. You need to catch the sharp “ping”—the sound of a hardened tool-steel die nearing its tensile limit because it’s been seated off-center. Most rookies dismiss the groan of the hydraulic pump as normal strain, but that noise often points to a longitudinal table misalignment, which can throw off bending accuracy three times more than minor bench unevenness. If the pump’s pitch rises into a high whine before the punch even contacts the material, the ram is battling internal friction or a misaligned gib. Every additional millimeter of stroke at that point is a calculated risk—with a potential $10,000 repair bill attached.

You are not faster than the hydraulics. The instant the sound shifts, your foot should be off the pedal before your brain consciously registers the change. This isn’t about being “cautious”; it’s about physics. A 100-ton ram doesn’t distinguish between 10-gauge stainless steel and your index finger. If the machine sounds like it’s grinding glass, the setup is forcing the frame into a fight—and the frame will always win.

So how do you demonstrate that this split-second response is a trained skill rather than a lucky reflex?

The 90-Day Rule: Why Consistency Is the Only Metric That Matters for Beginners

Your first three months in this shop aren’t measured by how many parts you can crank out; they’re measured by whether the hundredth part looks, feels, and measures exactly like the first. We use the 90-Day Rule because consistency is the only reliable proof that you’ve stopped treating the machine like a slot machine and started operating it as a precision instrument. In high-production environments running 500,000 cycles a year, hydraulic failure rates can be three times higher than in a typical shop. Surviving that pace requires mechanical empathy—the ability to sense wear and misalignment before the sensors flag it. If you can’t maintain a ±0.5° tolerance throughout an entire shift without constantly tweaking the backgauges, you haven’t mastered the machine—you’re just riding out the inevitable failure.

A veteran looks at the machine and sees a loaded weapon with a hair trigger; a rookie sees a shortcut to make the clock run faster. Speed is the byproduct of competence—never the objective. When you prioritize cycle time over a proper setup, you’re gambling your paycheck on the machine’s tolerance for your carelessness. True professionals understand that the most productive action they can take is to stop the machine the moment the process begins to drift, rather than hoping the next part will somehow correct itself.

So what concrete steps can you take to ensure that “drift” never occurs in the first place?

Build a Personal Pre-Bend Ritual to Guard Against Complacency

Complacency is the silent killer that turns seasoned operators into statistics. That’s why you need a pre-bend ritual—one that functions like a pilot’s pre-flight checklist. Before your foot even touches the pedal, confirm the die is properly seated, verify the sheet’s grain direction, and ensure the backgauge is clear of slag—every single time. Even if the CNC promises a flawless 90-degree bend, an experienced operator knows springback is never static. It often demands a deliberate 1–2° overbend to properly “set” the steel’s structure. This isn’t routine—it’s a discipline of verification. Treat the first stroke of every batch as a sacrificial calibration, revealing exactly how the material intends to behave that day.

High-end servo systems are engineered to pause the ram just above the pinch point, allowing for real-time correction—and you should adopt the same discipline manually. That pause is your final abort window, the last opportunity to decide that the setup isn’t worth the risk of a shattered tool or a scrapped part. You’re not merely operating a machine; you are the final safety interlock in a system capable of delivering lethal force. The moment you develop the discipline to walk away from a flawed setup, you stop being a laborer and start becoming a craftsman.

If you’re upgrading equipment, planning a new fabrication line, or need expert guidance on selecting the right press brake configuration for your application, don’t guess—contact us to discuss your specific production and safety requirements.

Check or Wreck: Treat every stroke like a bomb disposal—if the blast zone isn’t clear, don’t touch the trigger.

I. Introduction

Before we learn how to use press brake effectively, let's have a dip view about the press brake machine tool. Press brake is an essential tool in metal fabrication, which is used to bend the metal sheet into the required shape, offering controllable and consistent bending force. It clamps the workpiece between a matching top tool and bottom die to bend.

Common types of press brake machines are mechanical press brakes, hydraulic press brakes, electric press brakes, and CNC press brakes. Nowadays, modern press brakes are usually composed of a bed, ram, back gauge, control system, punch and die set, etc., which work together to form and bend sheet metal. Two C-frames, connected to a table at the bottom and a movable beam at the top, form the press brake’s sides.

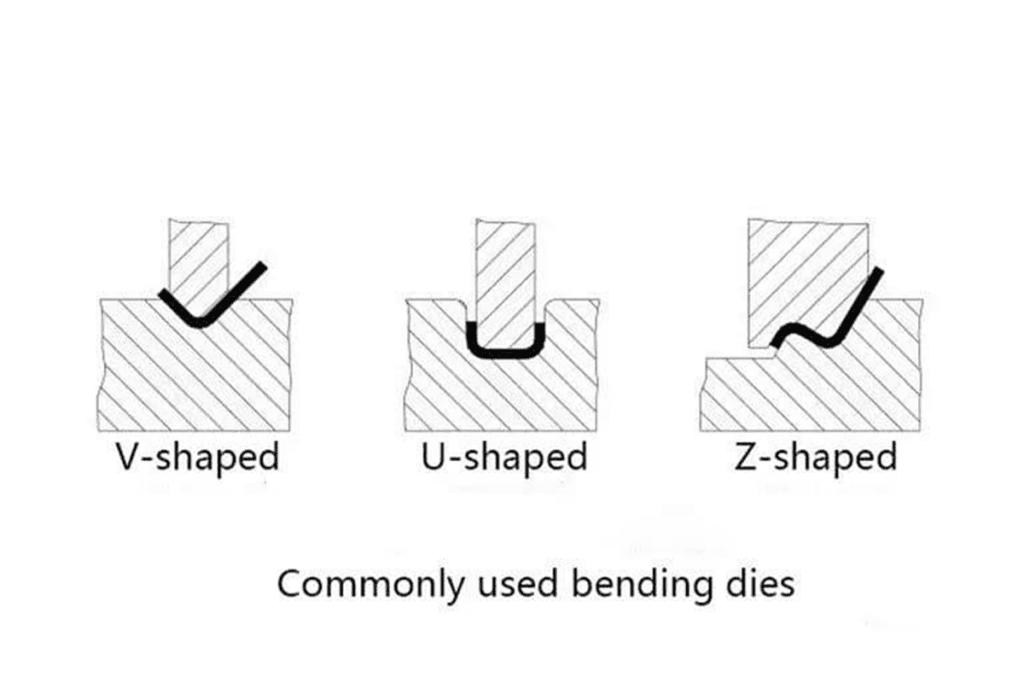

Press brake bending methods usually include air bending, bottom bending, and coining process. Press brake metal forming is vital in the sheet metal fabrication industry. The difficulty of press brake forming is related to the material grade you are forming. The harder the material is, the more springback it is.

The press brake forming techniques compensate the spring back not by bottom bending, but through the proper use of press brake tooling. Choosing the appropriate tooling is critical for achieving accurate and efficient press brake operations. Here are key considerations for selecting the right tooling for your bending machine. For a deeper understanding of different tooling types and configurations, check out the Comprehensive Guide to Press Brake Tools.

II. Laying the Foundation: Essential Knowledge Before Operation

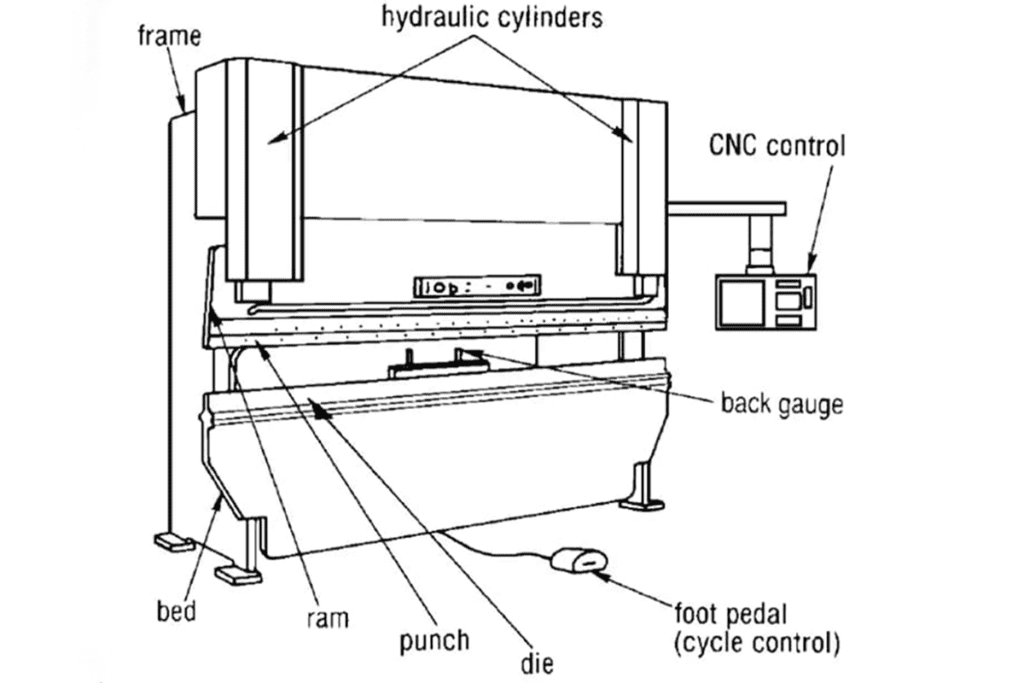

2.1 Press Brake Anatomy: A Visual Breakdown of Core Components

A modern press brake is a precise integration of mechanical, hydraulic, and electronic engineering. Understanding the function and interplay of its core components is essential for achieving accurate control. Readers seeking to compare press brakes with other forming tools can refer to the Guide to Punch Press for context on mechanical vs. hydraulic forming systems.

(1) Core Component Overview

Frame: The structural backbone of the machine, typically fabricated from high-strength steel plates in C-frame or O-frame designs. It provides stable support for all components and resists the immense stresses generated during bending. The rigidity of the frame directly impacts long-term precision and stability.

Ram: The vertically moving section that drives the punch downward. The ram’s movement accuracy, repeat positioning precision, and synchronized motion on both sides are crucial for consistent bend angles.

Bed: The stationary base used to mount the die and support the workpiece. It must remain perfectly parallel to the ram; any deviation can cause angle inconsistencies along the bend line. Many modern machines incorporate crowning systems into the bed to compensate for deflection.

Punch: Mounted on the ram, this upper tool applies bending force directly to the sheet. Its shape, angle, and tip radius determine the resulting internal bend radius and profile.

Die: Installed on the bed, its V-shaped opening supports the sheet. The width of the V-opening is a critical factor influencing required tonnage and the final bend radius. For those aiming to master die selection and bending accuracy, the Guide to Press Brake Tooling and Bending provides step-by-step insights into matching punches and dies effectively.

Backgauge: Located at the rear of the machine, this precision positioning device sets the flange length—the distance from the bend line to the sheet edge. Modern CNC backgauges can control multiple axes (X, R, Z1, Z2, etc.) to achieve accurate positioning for complex shapes.

CNC Control: The “brain” of the press brake. Operators input parameters such as material type, thickness, and target angle; the system automatically calculates required pressure, ram depth, and backgauge position, controlling the entire bending process. For operators looking to fine-tune their setup efficiency and component performance, learning from Mastering Press Brake Accessories provides actionable insights on optimizing each component.

(2) Power Mechanisms Explained

Mechanical: Utilizes a flywheel and crank linkage to drive the ram—fast and efficient, but with fixed stroke and speed. Once activated, it cannot be stopped mid-cycle, posing higher safety risks and offering less flexible pressure control. Rarely used today for high-precision applications.

Hydraulic: The current industry standard. Controls oil pressure and flow within hydraulic cylinders to move the ram. Offers powerful, flexible control with adjustable stroke, the ability to stop or reverse at any point, and precise pressure regulation—ideal for thick plates and complex parts.

To achieve optimal forming results, understanding how to calibrate system pressure is essential—learn more about How to Adjust the Press Brake Back Pressure.

Servo-Electric: Driven by high-power servo motors via pulleys or ball screws, eliminating hydraulic oil. Delivers exceptional precision, speed, low noise, and energy efficiency—using roughly 50% of the energy of hydraulic presses. Offers extremely high repeat positioning accuracy, making it perfect for precision, high-speed thin sheet work.

(3) Key Terminology Reference

Tonnage: The maximum force a press brake can apply—a core measure of its capacity. Required tonnage increases with material tensile strength, thickness, and bend length, and decreases with wider die openings.

Bending Length: The maximum width of the workpiece the machine can process.

Bend Angle: The final angle formed after bending.

Springback: The phenomenon where metal partially returns toward its original shape after bending due to elastic recovery—a universal characteristic of cold forming processes.

K-Factor: A coefficient related to material properties, thickness, and bend radius used to calculate flat patterns before bending. It represents the positional shift of the “neutral axis” (the layer neither stretched nor compressed) within the material’s thickness. Accurate K-factors are essential for meeting design specifications.

2.2 Safety Boundaries: Non-Negotiable Protocols and Environmental Standards

Operating a press brake ranks among the most hazardous tasks in a sheet metal workshop—any lapse can result in severe injury. Safety protocols are not mere suggestions; they are strict boundaries that must be observed. For a complete operator-oriented reference, consult the Press Brake Safety and Operation Guide before working on the machine.

(1) Personal Protective Equipment (PPE) Checklist

Operators must always wear the “triple set” of PPE:

• Safety Glasses: Protect eyes from flying metal fragments or broken tooling.
• Cut-Resistant Gloves: Safeguard hands when handling sharp sheet edges.
• Steel-Toe Safety Shoes: Prevent foot injuries from dropped heavy workpieces or tools.

(2) Built-In Machine Safety Systems

Modern press brakes feature multiple safety devices that must be verified before operation:

• Light Curtains: Create an invisible infrared barrier around the operating zone. If a hand or object enters the area while the ram is descending, the system instantly signals an emergency stop.
• Two-Hand Controls: Require simultaneous activation of two spaced-apart buttons to initiate ram movement, ensuring both hands remain safely away from the tooling area.
• Emergency Stop: Large red mushroom-head buttons located at key points on the machine. Pressing any will immediately cut all power and halt all movement.
• Golden Workspace Standards

A safe, efficient workspace is equally vital—follow the “three essentials” checklist:

1. Clean and Uncluttered: Keep floors free of oil, debris, and tools to ensure smooth movement and prevent slips or trips.

2. Well-Lit: Good lighting aids in reading drawings, aligning bend lines, and reducing operational errors.

3. Adequate Space: Allow sufficient clearance for rotating and handling large sheets to avoid collisions with people or equipment.

2.3 Blueprint and Material: The Source of a Perfect Bend

Success in bending begins the moment you interpret the blueprint and inspect the material—any error at this stage will undermine all subsequent efforts.

(1) Blueprint Reading Essentials

A sheet metal bending drawing contains all manufacturing instructions—quickly identify:

• Bend Lines: Indicate where bends occur.
• Angles and Directions: Specify each target bend angle (e.g., 90°, 135°) and whether the bend is up or down.
• Dimensions and Tolerances: Include flange lengths, distances from holes to bend lines, and acceptable error margins.
• Material Specifications: Clearly state the material type (e.g., SUS304, AL5052) and thickness.
• Material Verification Checklist

Upon receiving the sheet material, always verify:

• Verify material type, thickness, and hardness: Use a caliper to measure thickness and confirm it matches the specifications on the drawing. Different materials and hardness levels require distinct bending parameters.
• Pay close attention to grain direction: During rolling, sheet metal develops a grain structure. Bending along the grain significantly increases the risk of cracking—especially when the bend radius is small. The optimal bending direction is perpendicular to the grain. If bending along the grain is unavoidable, increase the bend radius accordingly.

Why does a 90° setting rarely produce a perfect 90° bend? The culprit is the metal’s tendency to elastically recover after bending.

When the punch applies force to the sheet, the material undergoes both plastic deformation (permanent) and elastic deformation (recoverable). Once the punch is removed, the force disappears, and the suppressed elastic deformation is released—causing the angle to “spring back” slightly.

Springback is not a fixed value—it is influenced by multiple factors:

• Material strength: The higher the yield strength (e.g., high-strength steel), the greater the springback.
• Material thickness: Thicker sheets tend to exhibit less springback.
• Bend radius: A larger bend radius relative to sheet thickness results in greater springback.
• Bending method: For example, air bending produces more springback than bottoming.

To counteract springback, skilled operators or advanced CNC systems use overbending—programming a slightly smaller angle (e.g., 88°) so that after springback it settles at the desired 90°. Modern high-end press brakes may even feature laser angle measurement systems that monitor the bend in real time and dynamically adjust the punch depth, virtually eliminating springback uncertainty.

Ⅲ. Selecting the Right Tooling

3.1 Tool Material and Hardness

• Tool Material: The material of the tooling significantly impacts its performance and durability. Common materials include hardened steel, carbide, and specialized alloys. Hardened steel tools are durable and resistant to wear, making them suitable for heavy-duty applications. Carbide tools offer high hardness and wear resistance, ideal for precise and repeated operations. For example, using hardened steel tools for bending thick stainless steel sheets can prevent premature wear.
• Tool Hardness: Ensure the tooling has adequate hardness to withstand the forces involved in sheet metal bending. Higher hardness levels provide better wear resistance but may be more brittle. A tool with a Rockwell hardness of 60 HRC is typically suitable for bending high-strength materials.

3.2 Tool Coatings

• Coatings: Tool coatings, such as titanium nitride (TiN) or diamond-like carbon (DLC), can enhance wear resistance and reduce friction, extending the tool's lifespan. TiN-coated tools, for instance, can last up to three times longer than uncoated tools in high-volume production environments.

3.3 Workpiece Material and Thickness

• Material Type: Different materials have varying properties that affect the bending process. For instance, aluminum is more malleable than steel, requiring different tooling considerations. Stainless steel, with its higher tensile strength, may require harder and more robust tooling.
• Thickness: The thickness of the workpiece determines the tonnage required and the type of tooling. Thicker materials need more robust tooling to withstand the higher forces without deforming or breaking. For example, bending a 10mm thick steel plate requires a tool capable of handling higher tonnage compared to bending a 2mm aluminum sheet.

3.4 Tooling Types and Configurations

Punches and Dies: These are the primary tools in every press brake operation. The punch is the top tool that presses the material into the die, the lower tool that shapes the bend.

• V-Dies: Commonly used for air bending, V-dies come in various sizes to match different material thicknesses and bend angles.
• Gooseneck Punches: Designed for forming deep bends without interference from the punch body.
• Acute Angle Punches and Dies: Used for making sharp bends and angles less than 90 degrees.
• Specialty Tooling: For specific applications such as hemming, offset bends, or box bending, specialty tooling can be used. Hemming tools are used to fold the edge of the sheet metal back onto itself, while offset tools create a Z-shaped bend.

3.5 Compatibility and Machine Capacity

• Tooling Compatibility: Ensure the tooling is compatible with your press brake model. Check the tool clamping system, tool length, and mounting style. Some press brakes use standardized tooling systems like European, American, or Wila, which may influence your selection.
• Machine Capacity: Match the tooling to the capacity of your press brake. Consider the maximum tonnage, stroke length, and bed width. Using tooling that exceeds the machine's capacity can lead to damage and safety hazards.

3.6 Precision and Repeatability

• Tolerance Requirements: For high-precision applications, choose tooling that offers tight tolerances and minimal deflection. Precision-ground tools provide better accuracy and repeatability.
• Backgauge Integration: High-quality tooling should integrate well with the press brake's backgauge system to ensure consistent positioning and accurate bends.

3.7 Safety Considerations

• Tool Maintenance: Regular inspection and maintenance of tooling are essential for safe operation. Look for signs of wear such as cracks or deformations and replace tools as needed. For example, inspect the tooling for any chips or burrs that could affect the quality of the bends.
• Safety Features: Some tooling includes safety features like anti-slip surfaces or protective coatings to reduce the risk of accidents.

3.8 Cost-Effectiveness and Longevity

• Initial Investment vs. Long-Term Benefits: While higher-quality tooling may come with a higher initial cost, it often provides better performance, longer lifespan, and reduced downtime, leading to overall cost savings.
• Tooling Longevity: Invest in tooling that offers a good balance between durability and cost. Consider the frequency of use and the types of materials being processed.

3.9 User Experience and Skill Level

• Ease of Use: Choose tooling that is user-friendly and easy to set up, especially if multiple operators will be using the press brake.
• Operator Training: Ensure that operators are trained on the proper use and maintenance of the tooling to maximize efficiency and safety.

Ⅳ. How to Operate A Press Brake

4.1 Pre-Operation Checks

Review the Manual

• Thoroughly read the press brake's operation manual to understand the machine's capabilities, limitations, and safety features.
• Familiarize yourself with the control panel and any specific instructions related to the model you are using.

Inspect the Machine

• Conduct a visual inspection to check for any visible signs of wear, damage, or leaks.
• Verify that all safety guards are in place and functioning correctly.
• Ensure the emergency stop buttons are operational.

Check Tooling

• Inspect the punch and die for any signs of wear or damage.
• Verify that the tooling is properly aligned and securely fastened.
• Ensure the tooling matches the requirements of the material and bend you plan to perform.

Workspace Organization Requirements

• Clutter-Free Environment: Ensure that all tools, materials, and equipment are stored properly, keeping walkways clear of obstructions that could cause tripping hazards.
• Lubrication Management: Avoid over-lubrication of moving parts as this can lead to contamination or insufficient friction in critical areas like ball screws or guide rails.

4.2 Setting Up the Press Brake

Proper setup of the press brake is critical to achieving accurate bends and ensuring the safety of operations. The following steps outline the setup process:

(1) Select Appropriate Tooling:

Choose the correct matching punch and die based on the material type and the desired bend angle.

Ensure the tooling is in good condition and free from damage.

(2) Install and Align Tooling:

Carefully attach the punch to the ram and the die to the bed, ensuring they are securely fastened.

Use alignment tools or methods to ensure the punch and die are properly aligned. Misalignment can lead to inaccurate bends and potential damage.

(3) Program the Back Gauge:

Set the back gauge to the required positions based on the bending sequence and dimensions of the workpiece.

For CNC press brakes, input the necessary parameters into the control system for automatic positioning.

(4) Adjust Ram Stroke:

Set the ram stroke to the appropriate depth for the material thickness and the desired bend. This prevents over-bending or damaging the material.

4.3 Performing the Bending Operation

With the setup complete, you can proceed with the bending operation. Following these steps makes bending precise and safe:

(1) Position the Workpiece:

Place the metal plate on the bed, ensuring it is properly aligned with the backgauge.

Use clamps or other holding devices if necessary to keep the workpiece in position.

Verify the dimensions and alignment of the workpiece to ensure accuracy before starting the bending process.

(2) Initiate the Bend:

Activate the press brake using the control panel or foot pedal, depending on the machine’s design.

Monitor the initial bending process to ensure the workpiece is bending correctly.

(3) Monitor the Process:

Keep a close watch on the bending process to ensure it is proceeding as expected.

Listen for unusual noises and watch for unexpected movements, which could indicate a problem. Adjust the settings as necessary to correct any deviations.

(4) Check Bend Accuracy:

After completing a bend, carefully remove the workpiece from the machine, and measure the angle and dimensions of the bend to ensure it meets specifications.

Adjust the back gauge, ram stroke, or tooling as necessary to correct any inaccuracies.

(5) Sequence of Bends:

If the part requires multiple bends, follow the predetermined sequence to ensure accuracy and avoid reworking.

4.4 Final Inspection and Quality Control

Once the bending operation is complete, performing a thorough inspection ensures the quality and consistency of the finished part:

(1) Power Down the Machine

Turn off the press brake and follow the manufacturer’s shutdown procedures.

Ensure all moving parts have come to a complete stop before performing any further actions.

(2) Dimensional Checks:

Use calipers, die angle finders, and other precision tools to verify the final dimensions of the bends.

Compare the measurements against the design specifications.

(3) Visual Inspection:

Look for any defects such as cracks, wrinkles, or surface imperfections that might affect the part's integrity.

Ensure the bends are smooth and consistent across the workpiece.

(4) Adjustments and Corrections:

If any discrepancies or defects are found, make the necessary adjustments to the setup or process and rerun the operation on a new workpiece.

Document any changes to improve future setups and reduce errors.

(5) Clean the Work Area

Remove any debris, scrap material, or tools from the work area.

Ensure the press brake and surrounding area are clean and ready for the next operation.

(6) Perform Routine Maintenance

Conduct any necessary maintenance tasks such as lubrication, checking hydraulic fluid levels, and inspecting electrical connections.

Record maintenance activities in a log for future reference.

V. Advanced Press Brake Techniques in Practice

5.1 Advanced Press Brake Techniques

The following three techniques are the true litmus test of an operator’s skill level, playing a vital role in a product’s functionality, safety, and visual appeal.

(1) Hemming: Creating Safe, Attractive Folded Edges

Hemming involves folding the edge of a sheet completely back onto itself to produce a smooth, thickened safety edge. It is widely used to increase part rigidity, eliminate sharp edges, or prepare components for subsequent assembly. A standard hemming process is achieved through a precise two-step method:

1. Step One: Acute Bend Using an acute-angle punch (typically 30°) and a matching die, the sheet edge is first bent to a sharp angle well below 90°. This pre-bend shapes the fold in advance, preventing uncontrolled deformation or cracking during the final flattening.

2. Step Two: Flattening The pre-bent workpiece is transferred to a flattening die. A flat punch then applies pressure significantly greater than for standard bends to completely flatten and close the fold. This requires substantial tonnage, as the material is being forced into intense plastic deformation.

Expert Tip: Modern press brakes often feature spring-loaded two-stage hemming dies that cleverly integrate the acute V-groove and flattening surface into the same lower die. This allows both operations to be completed in a single stroke, delivering exponential gains in efficiency.

(2) Offset Bends: One Setup for a Z-Shaped Step

Offset bending (also known as Z-bending) creates two parallel bends in opposite directions on a single workpiece, producing a stepped or Z-shaped profile. This form is commonly used for overlapping parts, clearance, or added structural strength.

Methods:

Specialized Tooling (Most Efficient): Using dedicated joggle die sets, whose punches and dies already have a Z-shaped profile, both bends can be formed in a single stroke. This delivers maximum efficiency, consistency, and precision.

Two-Step with Standard Tooling (Most Versatile): Without specialized tooling, the offset can be made in two consecutive bends. First, perform a 90° bend at the target position; then flip the workpiece 180° and make a second 90° bend in the opposite direction. The distance between the two bends determines the offset height. The key challenge is ensuring precise positioning and parallelism for the second bend.

(3) Large Radius Bending: Step Bending for Smooth Curves

When the desired bend radius is much larger than the sheet thickness (for example, eight times the thickness or more), using a standard large-R die becomes impractical or prohibitively expensive. In such cases, step bending—also called bump bending—is an ingenious, highly adaptable technique. The principle is to approximate a large smooth curve using a sequence of closely spaced, small-angle bends.

• Programming Essentials: The operator simply inputs the target arc’s radius, angle, and arc length into the CNC system.
• System Calculation: Advanced CNC systems automatically break the large arc into dozens or even hundreds of tiny straight segments. They calculate the pitch—the distance the back gauge advances each time—and the step angle for each small bend.
• Execution: The operator positions the sheet against the back gauge and starts the machine. The back gauge advances in small, continuous steps while the ram performs shallow bends in sync, gradually “bumping” the material into the required large radius. The smaller the pitch and the greater the number of steps, the smoother and more perfect the resulting curve.

5.2 Efficiency Enhancement Strategies

In modern manufacturing, the adage “time is money” holds true more than ever. The following strategies are designed to drastically reduce non-productive time, enabling the press brake to deliver maximum value.

(1) A Revolution in Tool Change: From Hours to Minutes Traditionally, changing press brake tooling was a time-consuming, labor-intensive, and hazardous task, often taking 30 minutes to several hours. This extended downtime was a major bottleneck for small-batch, high-mix production. The advent of Quick Die Change (QDC) systems completely transformed this scenario, slashing tool change time to mere minutes or even seconds—a true leap in efficiency.

(2) Core Technologies:

Hydraulic/Pneumatic Clamping: Replaces the traditional manual tightening of bolts. With the push of a button, clamps along the upper beam and worktable instantly lock or release all tooling.

Segmented & Self-Aligning Tooling: Standard-length short dies can be quickly combined to any required length, and precision engineering ensures they automatically align to the centerline when clamped—no manual fine-tuning needed.

(3) Major Benefits:

Drastic Downtime Reduction: The machine spends over 95% of its time producing instead of waiting.

Small-Batch Viability: Even orders of just a few pieces can be profitable thanks to minimal changeover time.

Significantly Improved Safety: Automated operation reduces the risks associated with manually handling heavy tooling.

Batch Production Optimization: The Art of Bend Sequencing For complex parts with multiple bends, the sequence directly affects both efficiency and feasibility. A poor order can cause the workpiece to collide or interfere with the press brake or tooling during later bends, or require excessive flipping and rotating by the operator. Optimization Goal: Find a “golden path” that minimizes tooling changes and workpiece flips while completely avoiding collisions.

Manual Planning: Experienced operators mentally rehearse the entire process like a chess game, often following basic principles such as “short edges first, then long edges” or “bend the middle first, then the sides.”

Automated Software Optimization: This is where modern offline programming software truly shines. After importing the part’s 3D model, the software can simulate all possible bend sequences within seconds and, using collision detection algorithms, automatically recommend the most efficient, interference-free production path.

The Value of Offline Programming: Achieving Zero Downtime When Switching Tasks Offline Programming shifts the creation, simulation, and optimization of bending programs from the costly machine control panel to a standard office computer. Traditional approach: An operator stands at the machine, thinking through each step while inputting parameters, running trial bends, and making adjustments. During this entire process, equipment worth hundreds of thousands or even millions sits idle. Offline programming approach:

Parallel Workflow: While one press brake is busy completing Task A, the engineer is already preparing and virtually simulating all programs for Tasks B, C, and D on the computer.

Seamless Transition: As soon as Task A finishes, the fully tested program and setup drawings for Task B are instantly transmitted to the machine via the network. The operator simply installs the tooling according to the drawings—especially fast if using QDC—and can start production immediately.

(4) Key Advantages:

• Maximized Equipment Utilization: Keep the press brake focused on its core function—bending—rather than programming.
• Proactive Problem-Solving: High-precision simulations allow potential collision issues to be identified and resolved in the virtual environment, ensuring a first-run success and eliminating scrap or rework.
• Knowledge Preservation: Proven manufacturing solutions are stored as digital files, becoming valuable corporate assets that no longer depend on an individual operator’s intuition or memory. To see which modern press brakes incorporate these advanced features, feel free to explore our product Brochures.

Ⅵ. Safety Precautions in Using Press Brakes

6.1 General Safety Measures

Personal Protective Equipment (PPE):

Operators need to know to wear appropriate PPE at all times. This includes safety glasses to protect the eyes from metal shards, gloves to shield hands from cuts and abrasions, and steel-toed boots to protect feet from heavy objects. Additionally, hearing protection is recommended due to the noise generated during operation.

Safe Working Environment:

Maintaining a clean and organized workspace is crucial. Floors should be free of obstacles and spills to prevent slips and falls. Proper lighting ensures that operators can see their work clearly, reducing the risk of errors and accidents. It's also essential to have clear emergency exits and accessible fire extinguishers in the vicinity.

6.2 Machine-Specific Safety

Pre-operation Checks:

Before using the press brake, operators should know to perform a series of pre-operation checks. This includes verifying that all safety guards and barriers are in place and functioning correctly.

Inspecting the machine for any signs of damage or wear, such as cracks or leaks, is also necessary to prevent malfunctions during operation. Additionally, operators should ensure that the workpiece is securely clamped and that the tooling is appropriate for the task.

Emergency Stop Procedures:

Understanding and being able to quickly access the emergency stop mechanism is critical. Operators should familiarize themselves with the location and operation of the emergency stop button or pedal.

In the event of an emergency, knowing how to halt the machine immediately can prevent injuries and further damage to the equipment.

Ⅶ. Maintenance and Troubleshooting

7.1 Regular Maintenance

Daily Check-Up Routines

• Visual Inspection: Conduct a thorough visual inspection of the machine, looking for any signs of wear, damage, or leaks.
• Safety Guards and Sensors: Ensure all safety guards and sensors are in place and functioning correctly.
• Hydraulic Fluid Levels: Check the hydraulic fluid levels and top up if necessary, ensuring there are no leaks or contamination.
• Clean the Machine: Remove any metal shavings, dust, and debris that may have accumulated on the machine and work area.
• Lubricate Moving Parts: Lubricate all moving parts, such as the ram guides, back gauge screw, and any other critical points per the manufacturer’s guidelines.
• Check Bolts and Fasteners: Ensure that all bolts and fasteners are tightened properly to avoid any loose components during operation.

Lubrication and Cleaning Procedures

• Lubrication Schedule: Follow the manufacturer's recommended lubrication schedule, using the specified lubricants to ensure compatibility and effectiveness.
• Cleaning Tools and Solvents: Use appropriate cleaning tools and solvents to remove grime, grease, and debris without damaging the machine parts.
• Focus Areas: Pay special attention to high-usage areas such as the ram guides, back gauge slides, and punch and die holders. These areas experience more friction and require regular attention.
• Preventive Measures: Implement preventive maintenance measures such as regularly scheduled deep cleaning and scheduled replacement of consumable parts like filters and seals.

7.2 Common Issues and Solutions

Addressing Material Springback

Issue: Material springback occurs when the bending plate tries to return to its original shape after bending, resulting in less precise angles.

Solution:

• Over-Bending: Adjust the bend angle slightly beyond the desired angle to compensate for springback.
• Material Analysis: Understand the material properties and select appropriate tooling to minimize springback.
• Trial and Error: Perform test bends on scrap pieces to determine the correct over-bend angle for that specific batch of material.

Hydraulic System Issues

Issue: Hydraulic problems, such as inconsistent pressure or fluid leaks, can affect the machine's performance.

Solution:

• Monitor Pressure: Regularly check and monitor hydraulic pressure levels to ensure they are within the specified range.
• Inspect Connections: Ensure all hydraulic connections are secure and not leaking.
• Fluid Replacement: Change hydraulic fluids as recommended by the manufacturer to maintain the system's integrity.

Control System Failures

Issue: Malfunctions in the control system, particularly in CNC press brakes, can lead to operational disruptions.

Solution:

• Software Updates: Keep the control software up-to-date to benefit from the latest improvements and bug fixes.
• Diagnostic Tools: Utilize built-in diagnostic tools to identify and troubleshoot software issues.
• Professional Support: Seek assistance from qualified technicians for complex control system problems, ensuring the machine's programming is error-free.

Alignment Problems

Issue: Misalignment of the punch and die can lead to inaccurate bends and potential damage to the workpiece.

Solution:

• Check Alignment: Routinely check the alignment of the punch and die, especially after tooling changes or machine maintenance.
• Use Precision Alignment Tools: Employ precision tools to ensure accurate alignment for consistent bending results.

Ⅷ. FAQs

1. What are the different types of bends you can achieve with a press brake?

Press brakes can achieve various types of bends, including:

• Air Bending: The most common method, where the punch presses the material into an open die, forming an angle.
• Bottom Bending: The material is pressed into the bottom of the die, producing more precise bends. In bottoming, the punch tip radius determines the inside bend radius, and the die angle determines your bend angle.
• Coining: Involves pressing the punch into the die with significant force, creating highly precise bends and minimal springback.

2. How can you minimize errors while using a press brake?

To minimize errors during press brake operations:

• Ensure Proper Setup: Double-check the alignment of the punch and die, back gauge positions, and ram stroke settings.
• Use Consistent Parameters: Maintain uniform setup parameters for each batch of work.
• Conduct Test Bends: Perform test bends on scrap material to verify settings before bending the actual workpieces.
• Monitor Material Properties: Different materials may respond differently to bending forces, so adjust settings accordingly.
• Maintain Equipment: Regular maintenance and timely replacement of worn components help in maintaining accurate operations.

3. How do you troubleshoot a press brake if it’s not working properly?

When troubleshooting a press brake:

• Check the Basics: Ensure the machine is plugged in, powered on, and emergency stops are disengaged.
• Inspect Safety Systems: Verify that all safety guards and sensors are functioning.
• Hydraulic System: Check fluid levels, look for leaks, and ensure pressure is within the specified range.
• Control Systems: Use diagnostic tools to check for software or hardware issues in CNC systems.
• Mechanical Components: Inspect moving parts for wear or damage and replace any defective components.

Download the Infographic With High Resolution
